Solenoid Series Lfully sealed, explosion-proof. Suitable for installation on petrol engines. Intermittent Rating 225A Max - Cranking Rating 30 sec. 600A Max. Original ref. 7765

Solenoid Series Lfully sealed, explosion-proof. Suitable for installation on petrol engines. Intermittent Rating 275A Max - Cranking Rating 30 sec. 1000A Max. original ref. 9012

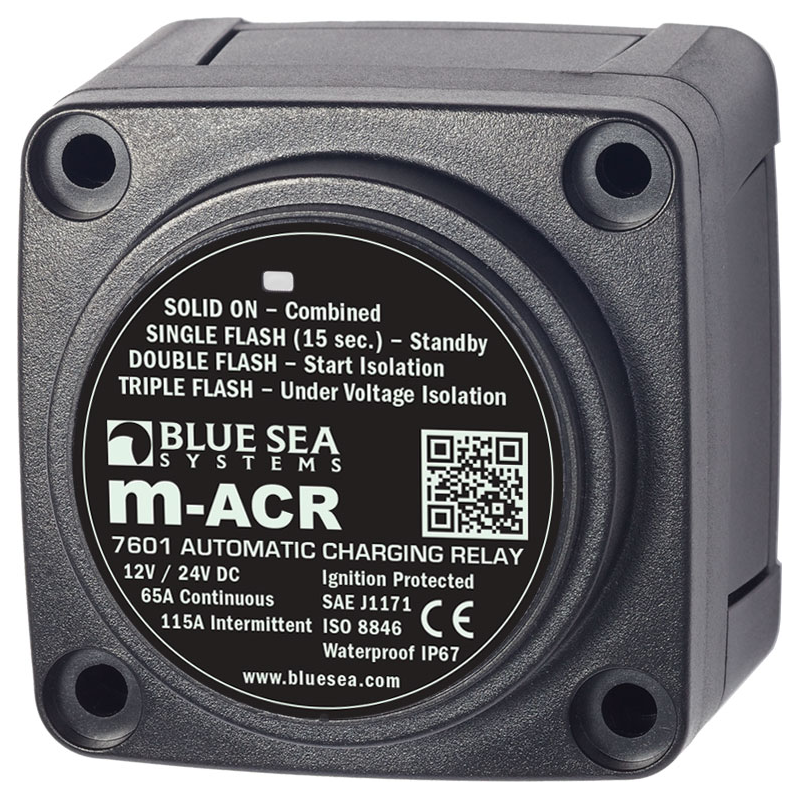

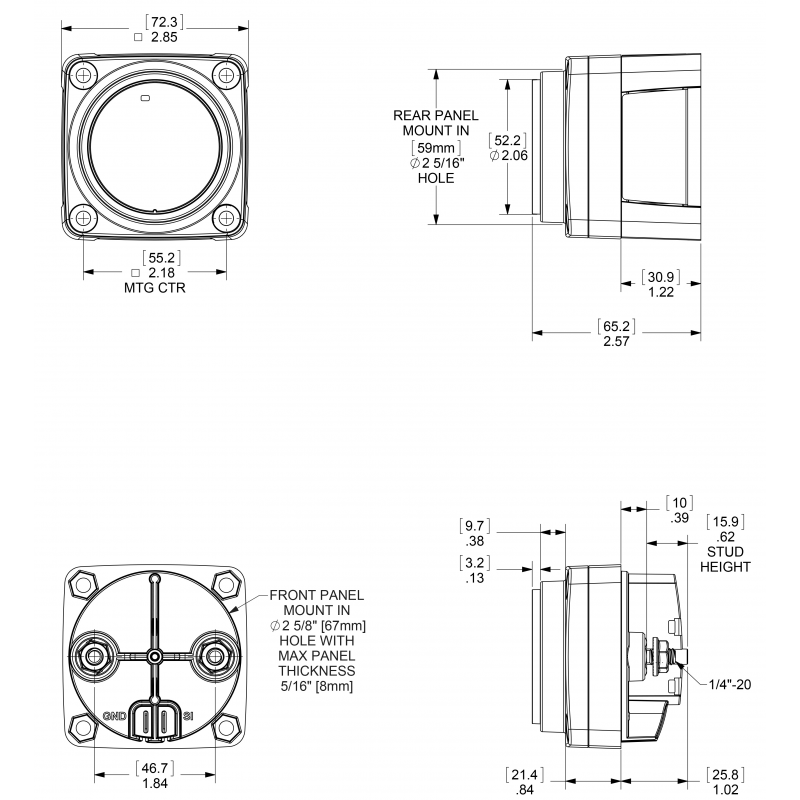

Automatic charging relaywatertight, designed to handle the charging current from alternators up to 65 Amp found on most outboard and many inboard engines. External or flush-mounted. Original ref. 7601

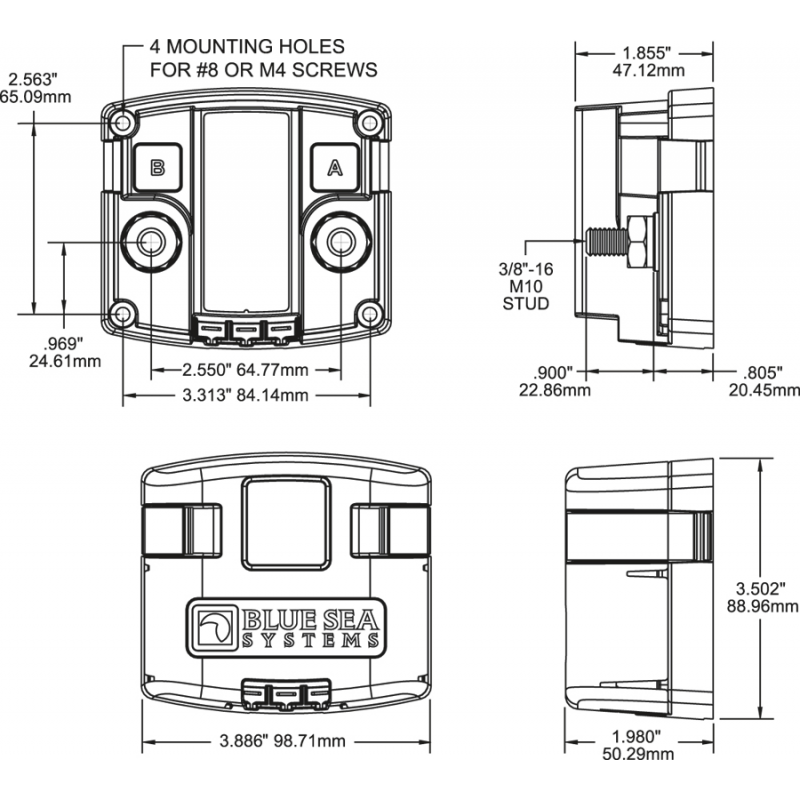

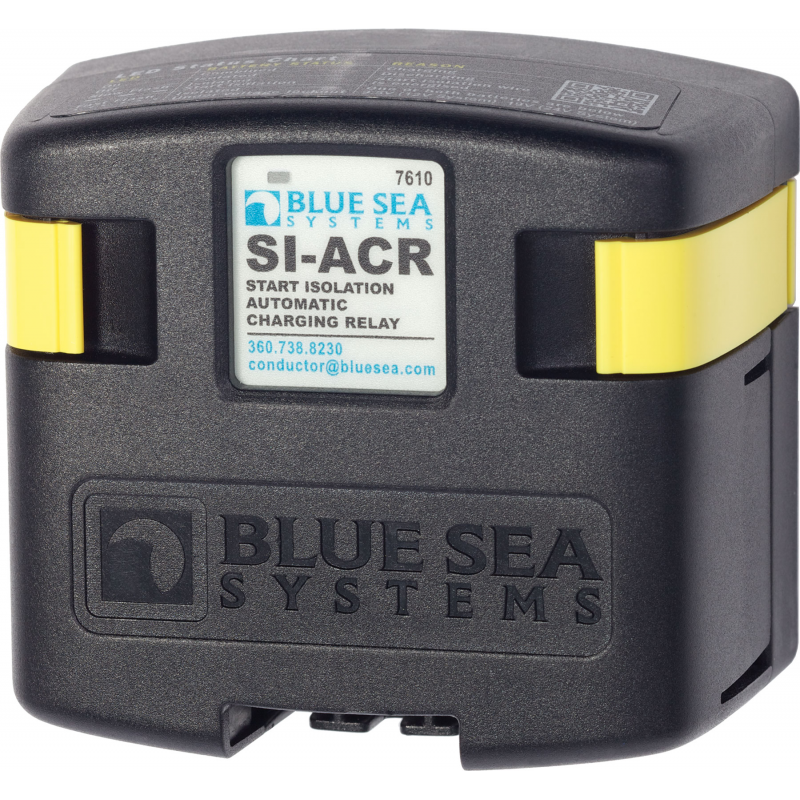

Automatic charging relay Series SIwatertight, designed to handle charging current from alternators up to 120 Amp. It protects sensitive electronics from voltage drops and spikes by temporarily isolating domestic loads from the engine circuit during start-up. Original ref. 7610

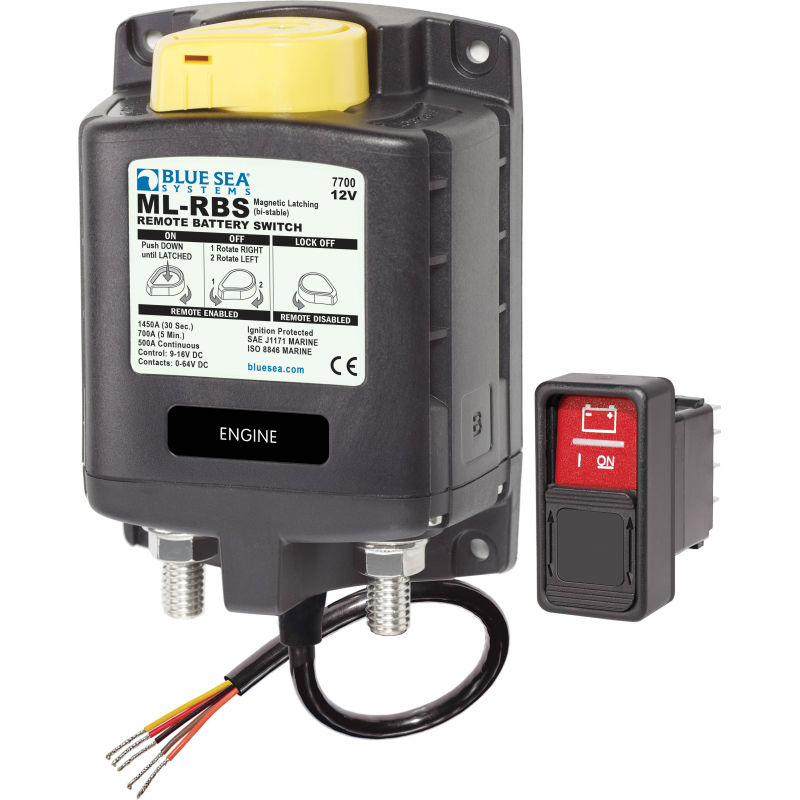

ML Series Solenoidfully sealed, bistable operation, magnetic latch does not draw current in "ON" or "OFF" state, draws current only when switch state is changed. Silver alloy contacts offer high reliability for switching live loads. Includes ML series Contura Switch. Explosion-proof. Continuous power 500A Max - Intermittent power 700A Max - 30 sec power 1450A Max. Original ref. 7713

ML Series Solenoidfully sealed, bistable operation, magnetic latch does not draw current in "ON" or "OFF" state, draws current only when switch state is changed. Silver alloy contacts offer high reliability for switching live loads. Includes ML series Contura Switch. Explosion-proof. Continuous power 500A Max - Intermittent power 700A Max - 30 sec power 1450A Max. Original ref. 7717

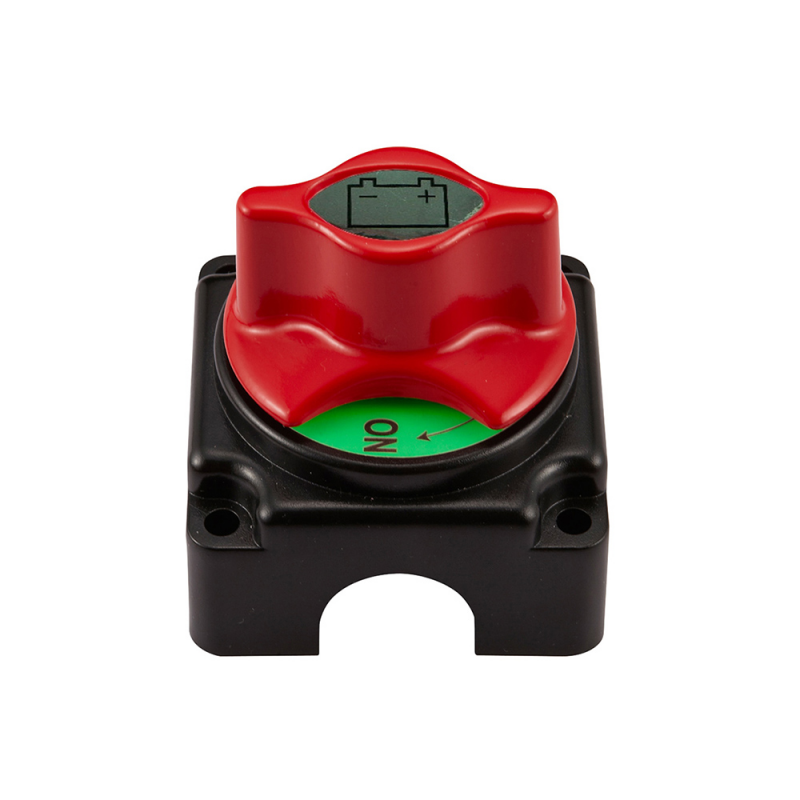

Mini Nylon Batterieschalter mit Knopf, 250 A Dauerbetrieb, 350 A intermittierend. Flache Montage. Grösse: mm 68 x 68 x 68hAdditional information:Mini battery switchnylon knob, 250 A continuous, 350 A intermittent. Surface mounting.Dim.mm. 68x68x68h

Bipolarer Bakelit-Batterieschalter, herausziehbarer Schlüssel, 4 versilberte Kupferkontakte, Dauerbetrieb 120A, 1500A intermittierend. Ideal für Boote mit MetallrümpfenAdditional information:Bipolar battery switchmade of bakelite, removable key, fitted with 4 silver plated copper rearcontacts, removable key, bipolar battery isolators are fitted for boatswith metal hulls.

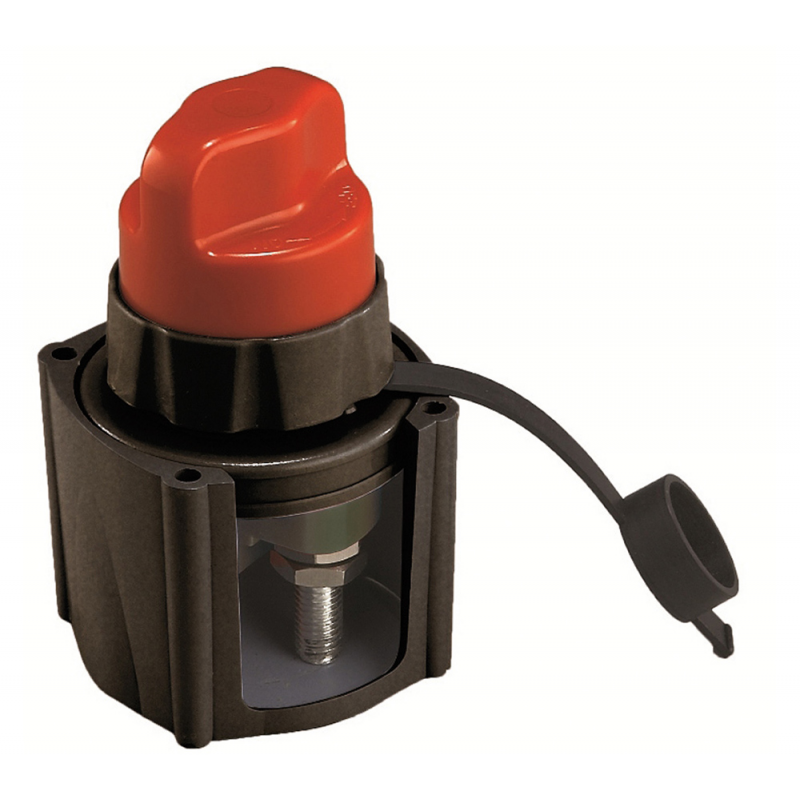

Batterischalter mit abnehmbarem Knopf. 280 Ampere Dauerbetrieb, 450 Ampere intermittierend. Anschlussklemmen aus versilbertem Kupfer - mm 9.5. Flansch mm 72, Vorsprung mm 60. Einbau oder BodenmontageAdditional information:Battery switchwith removable clip-on connection key. Max capacity: 280 Ampcontinuous, 450 Amp intermittent. Silver-plated copper terminalsconnection Ø mm. 9.5, flange Ø mm. 72 mm. width. 60. Flush or surfacemounting.

Unipolarer Batterieschalter aus schwarzem Polycarbonat mit Flansch mm 60, entfernbarer Schlüssel, Kupferkontakte. 100 Ampere Dauerbetrieb, 500 Ampere / 10AAdditional information:Battery switch unipolarin black polycarbonate with flange Ø mm. 60, key switch, copper contacts.Max capacity: 100 Amp continuous, 500 Amp for 10 seconds.

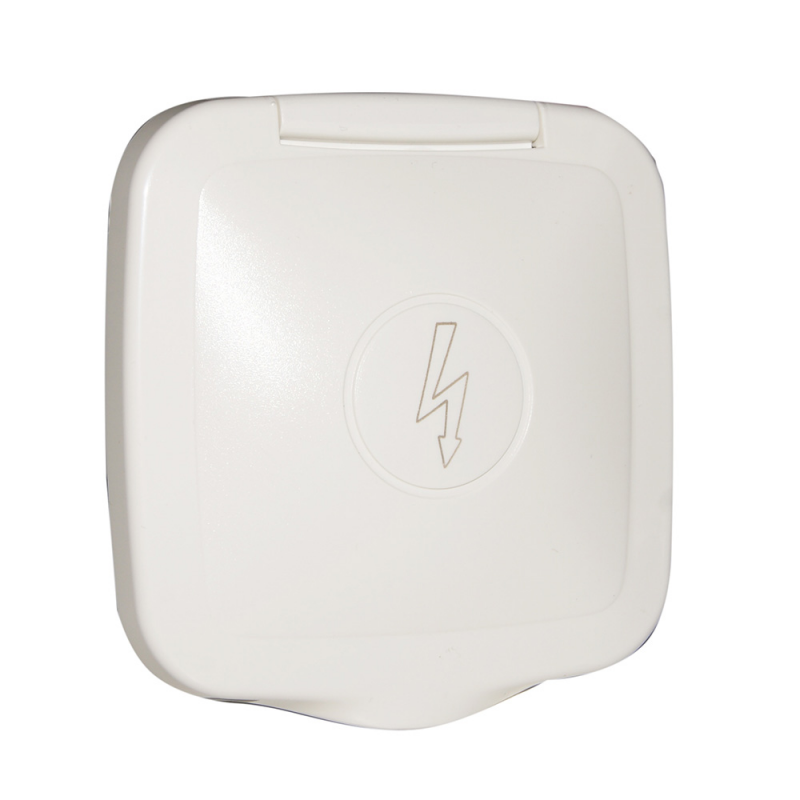

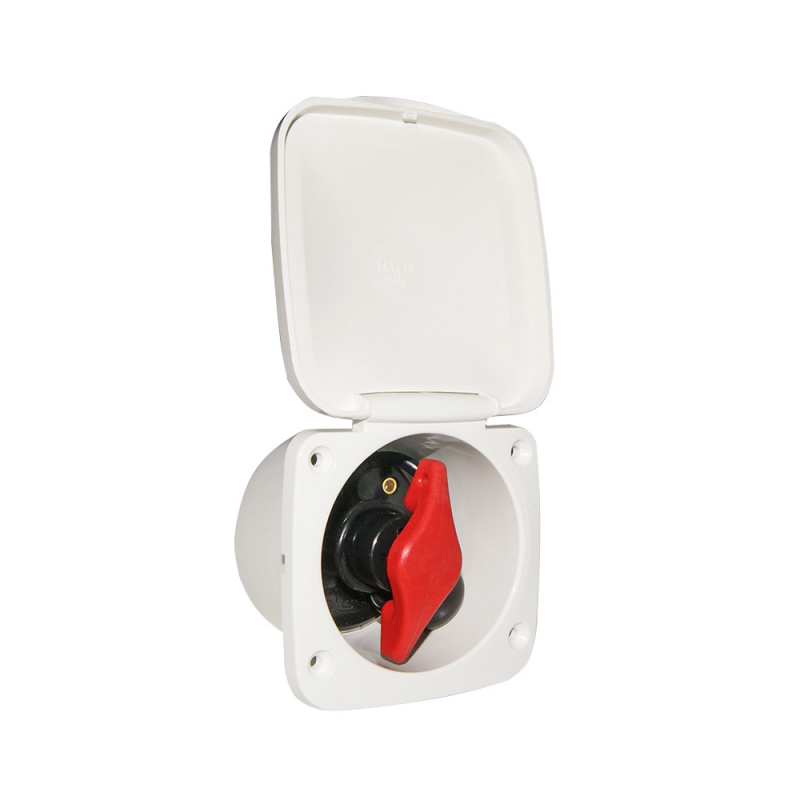

Nische in weiss ABS komplett mit Batteryschalter (39.39170) mit herausnehmbarem Schlüssel. 140 Ampere Dauerbetrieb, 2000 Amp / 3?. Versilberte Kontakte. Grösse: mm 100x105, Einbau mm 80, Tiefe inklusive Kontakte mm 80Additional information:Coverin white ABS with battery switches (3939170) with removable key.Max capacity: 140 Amp continuous, 2000 Amp for 3 secondes.Silver-plated copper contacts. Size mm. 100x105, built in mm Ø 80,depht including contacts mm. 80.

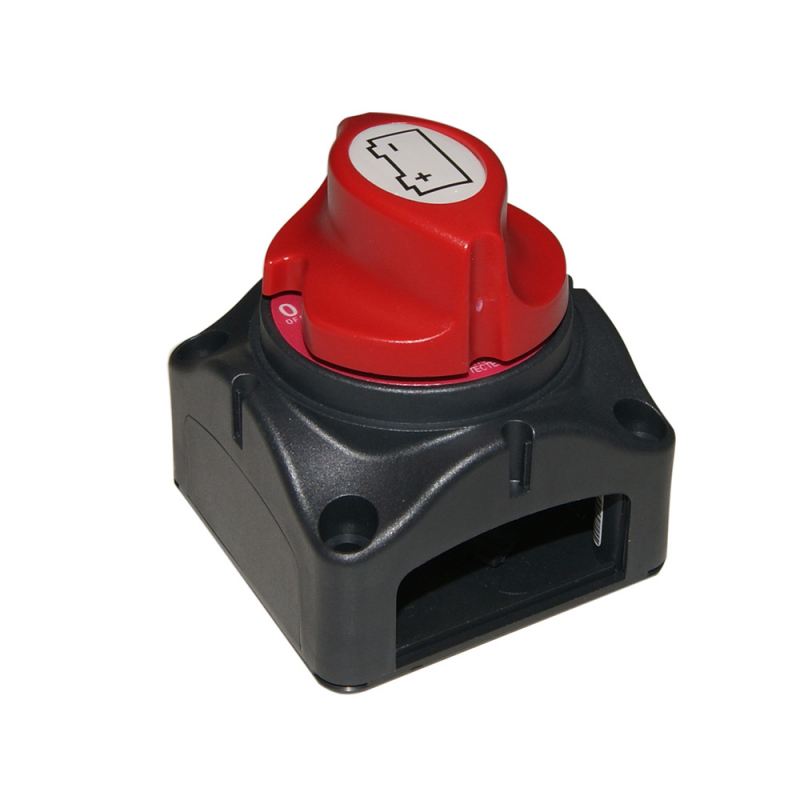

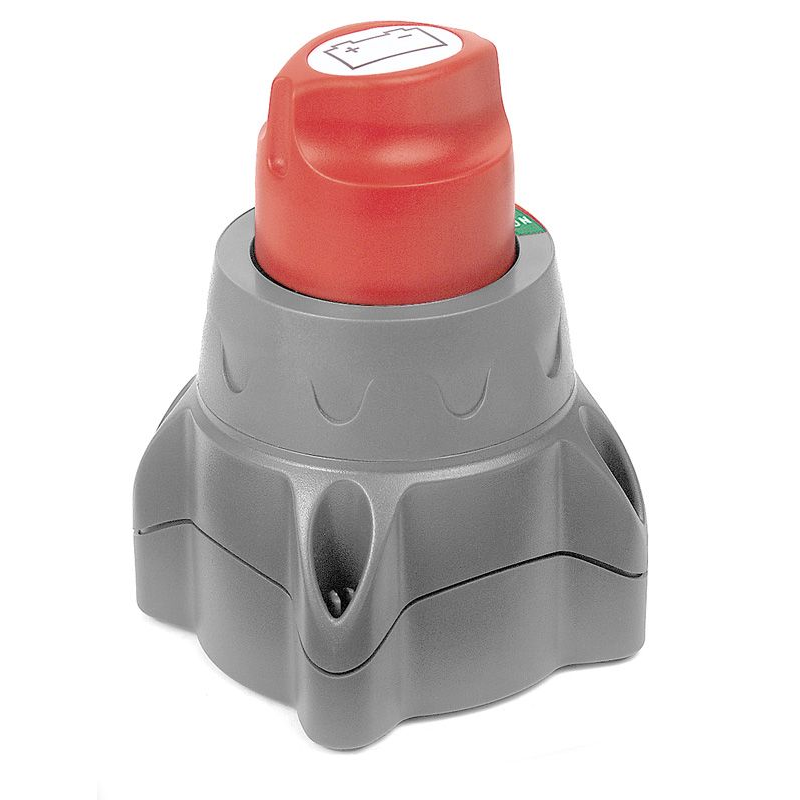

Battery switch BEPwith removable knob swivelling 45° counterclockwise. Max capacity:275 Amp. continuous, 1250 Amp. during starting cycle. Surface or flushmounting with threaded nut up to 199 mm. thickness. Connectingterminals 2x10 mm.

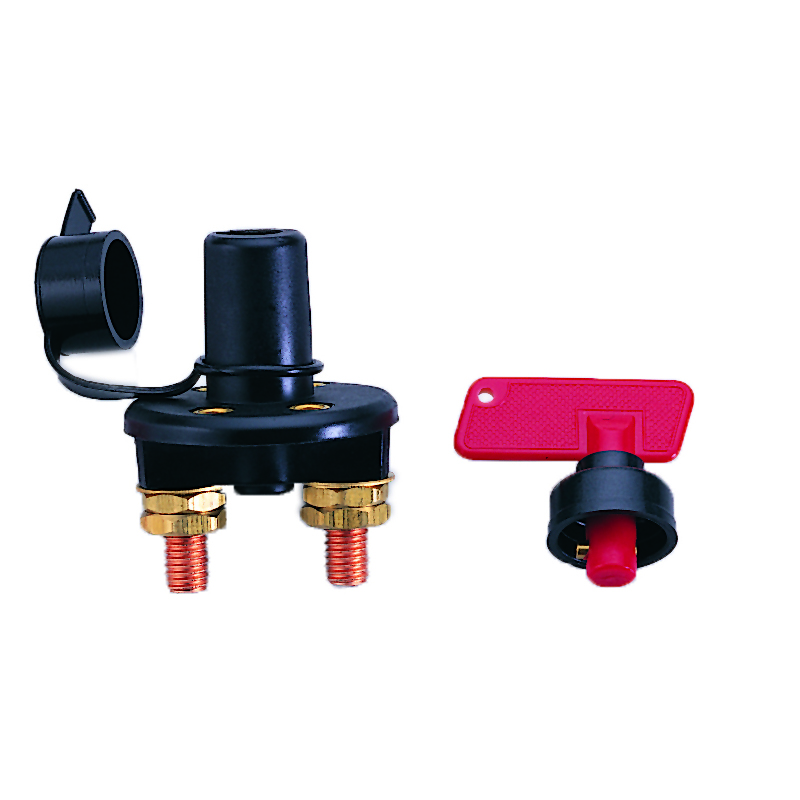

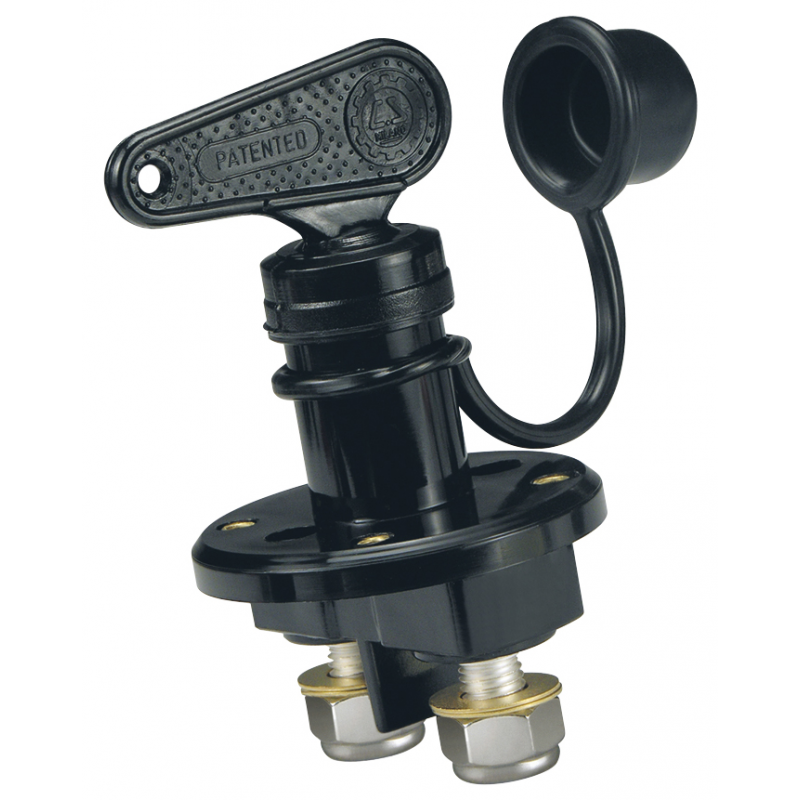

Unipolarer Batterieschalter, mit abnehmbarem Schlüssel. 100 Ampere Dauerbetrieb, 2000 Ampere / 3?. Ausführung in Kunststoff, versilberte Kontakte. Flanschbefestigung mm 64Additional information:Battery switchin plastic, single pole, plastic removable key. Max capacity in continuous100 Amp. Fastening on flange Ø mm. 64.

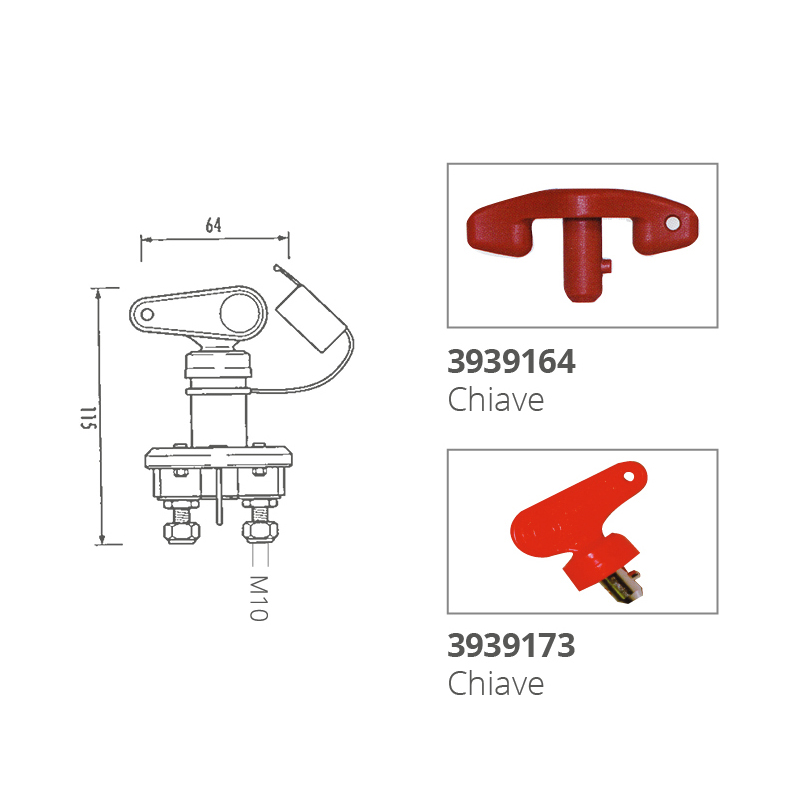

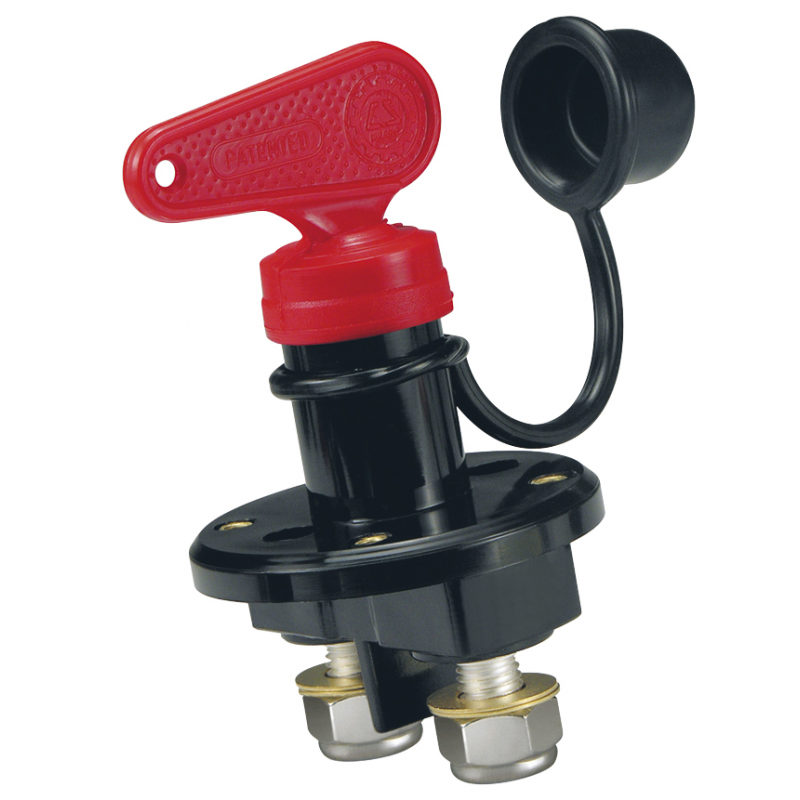

Unipolarer Batterieschalter, mit abnehmbarem Schlüssel. 140 Ampere Dauerbetrieb, 2000 Amp / 3?. Entspricht UNI EN 28846. Ausführung in Kunststoff, Kontakte in versilbertem Kupfer. Flanschbefestigung ½ mm 64Additional information:Battery switchin plastic, single pole, removable key. Max capacity: 140 Ampcontinuous, 2000 Amp for 3 seconds. Fastening on flange Ø mm. 64.

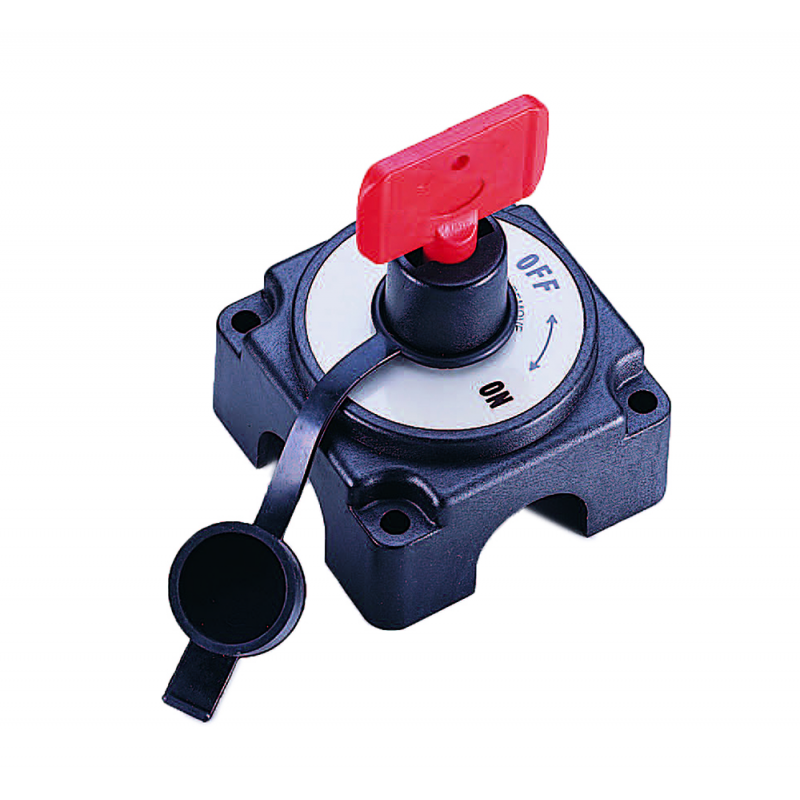

Backup-Batterieschalter mit herausnehmbarem Schlüssel Kapazität: 250 Amp. Kontinuierlich, 350 Amp. Interterminierend.Basis mm 67x67Additional information:Battery switchwith removable key. Max capacity: 250 Amps continuous, 350 Amp intermittent. Base mm. 67x67.

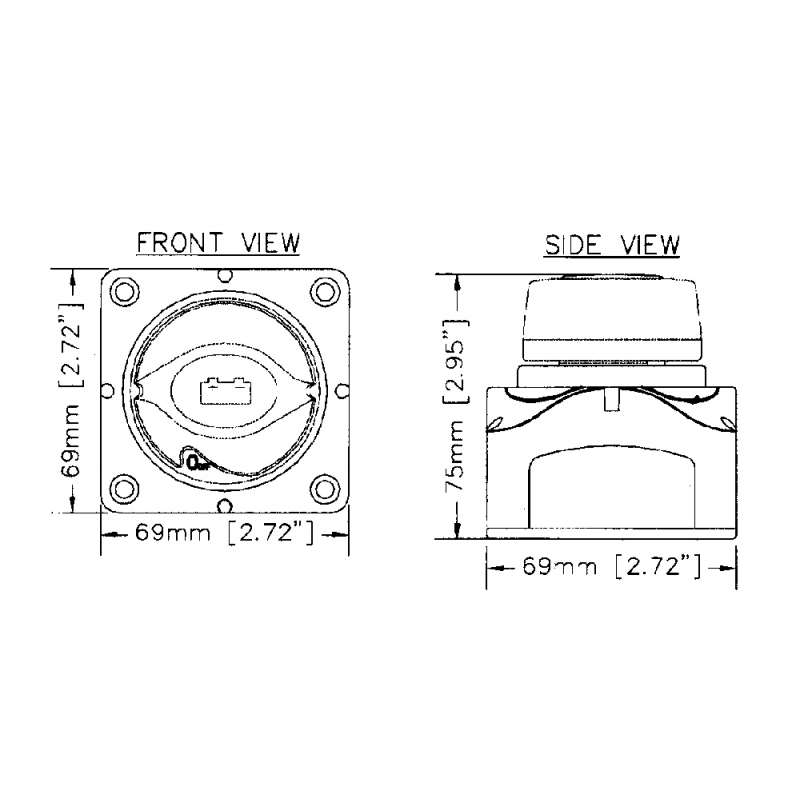

Battery switch BEPPatented system allows mounting of more switches. Knob cannotbe removed on ON and OFF position, but only swivelling 45°counterclockwise. Surface or flush mounting (bore Ø 52 mm.). Maxcapacity: 275 Amp continuous, 1250 Amp during starting cycle.Connecting terminals 2x10 mm.

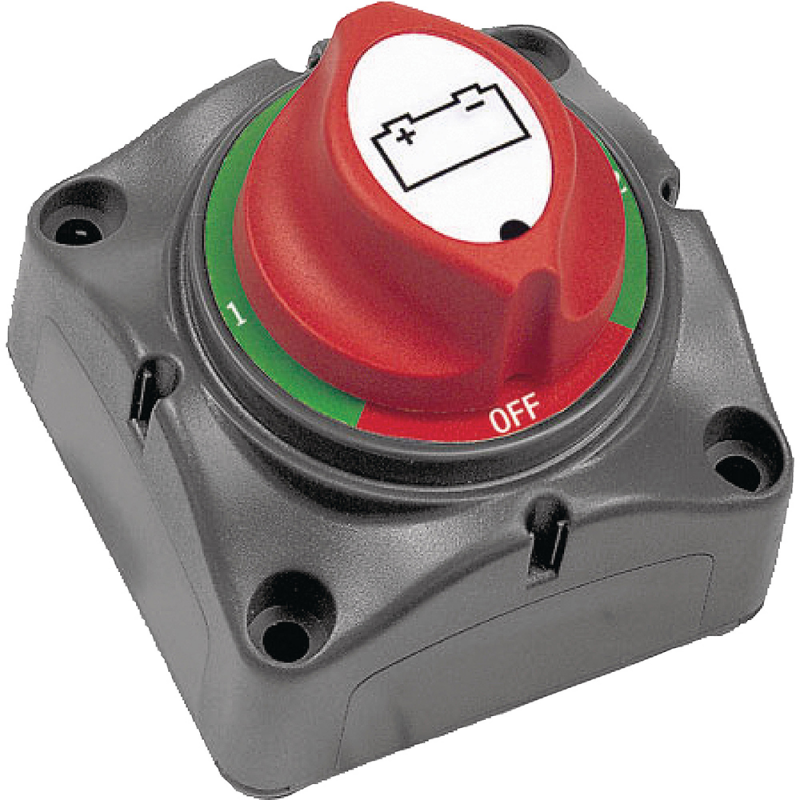

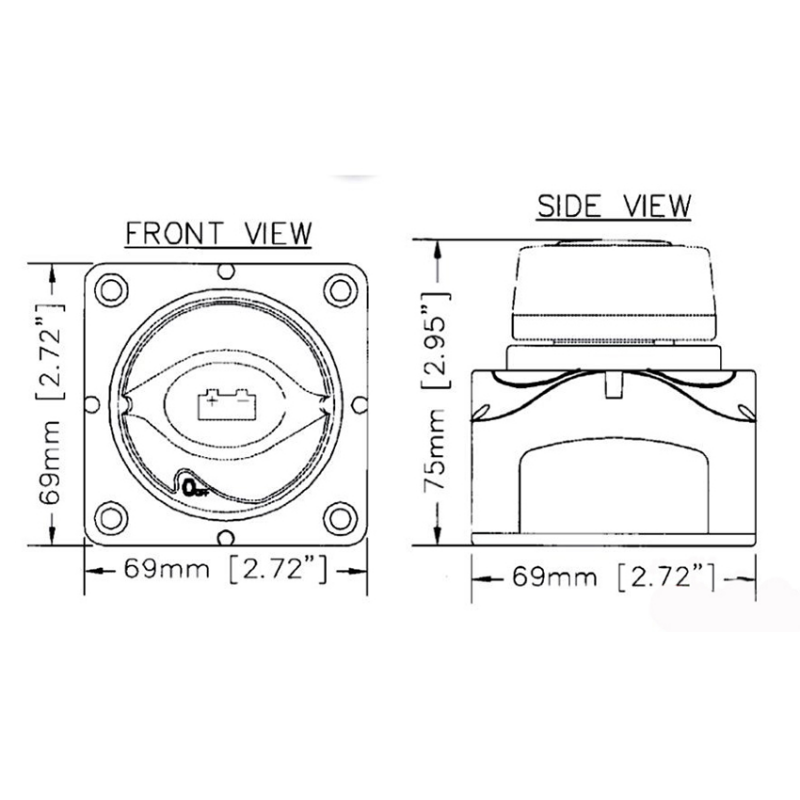

Battery selector switchThe patented system allows the modular installation of more switches.The knob can not be removed in the positions 1-2 and OFF, but onlyturning it 45° counterclockwise. Recessed or flush mounting (hole Ømm. 52). 200 A continuous, 1000 A during starting cycle. Connectingterminals: 3x8 mm.

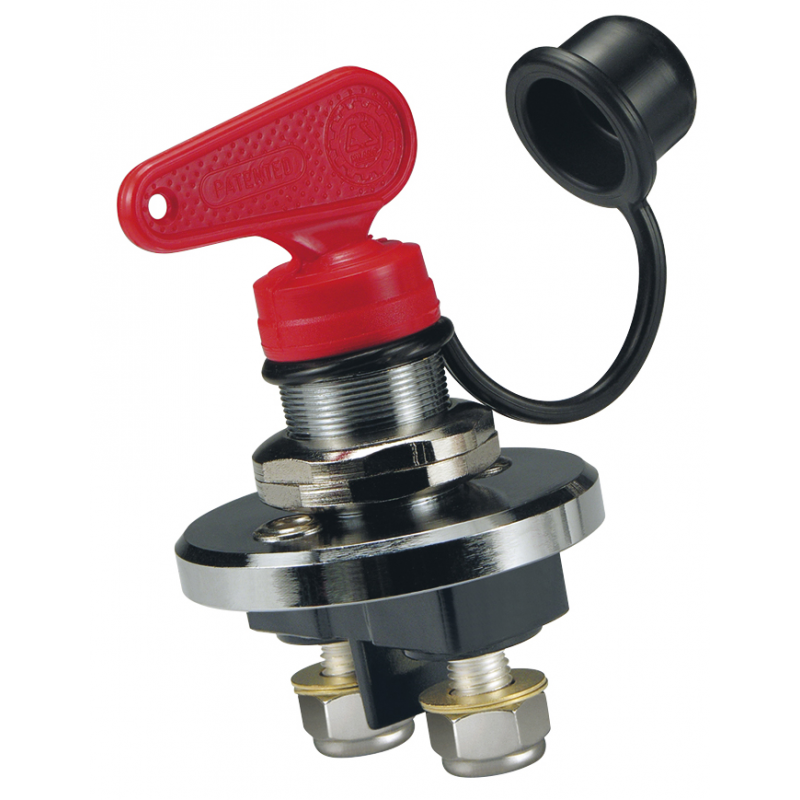

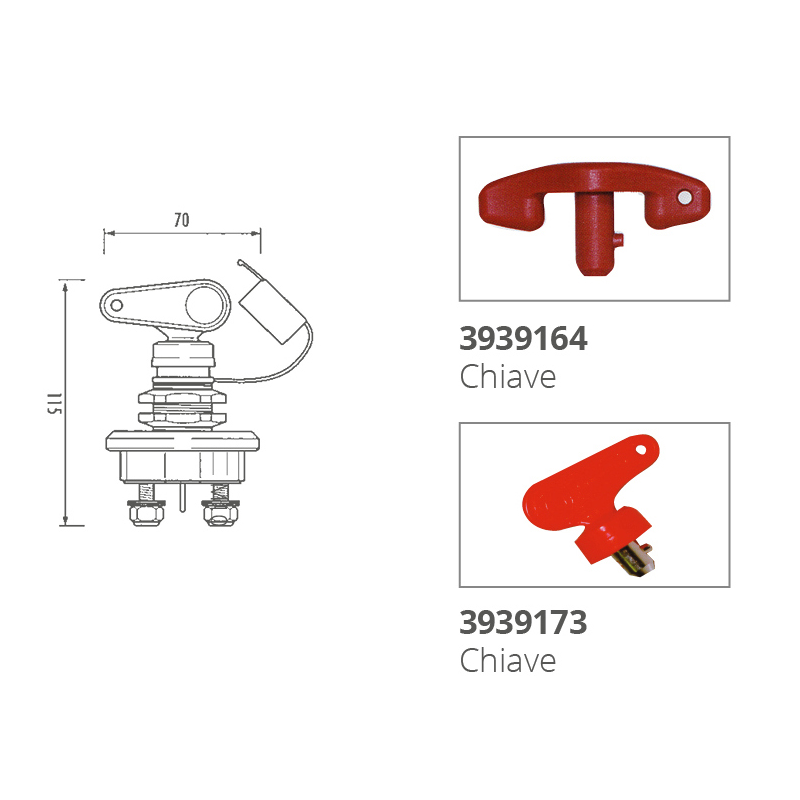

Battery switch unipolarremovable key. Max capacity: 140 Amp continuous, 2000 Amp for 3seconds. Made in plastic material and chromed brass. Fastening onflange Ø 68 mm. or on a cylinder Ø 27 mm. with nut and counter-nut.

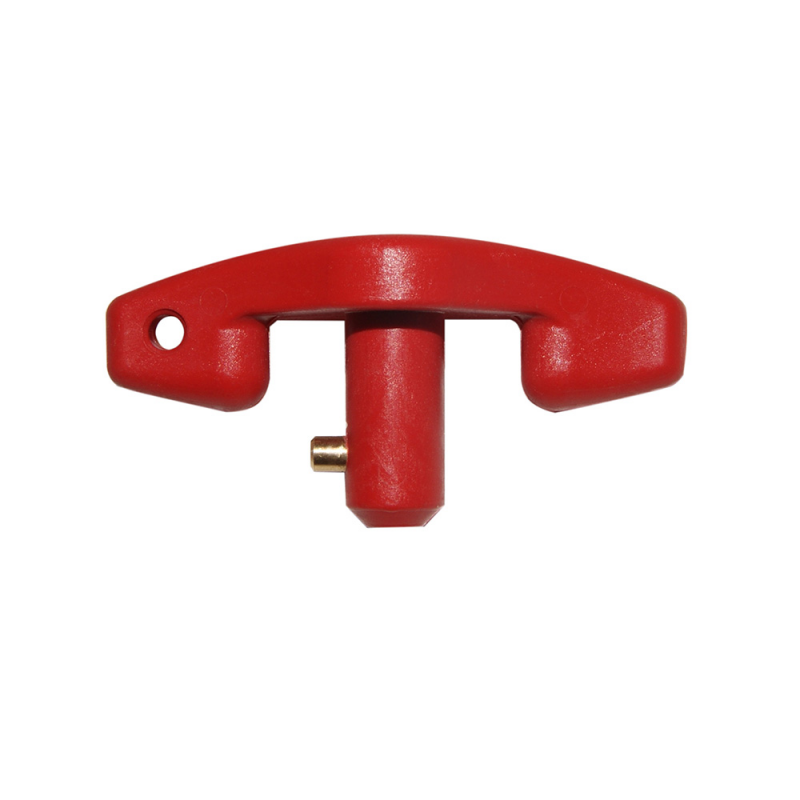

Ersatzschlüssel für 39.39163/69/70/72Additional information:Spare key for battery switch art.3939169/70/72/83

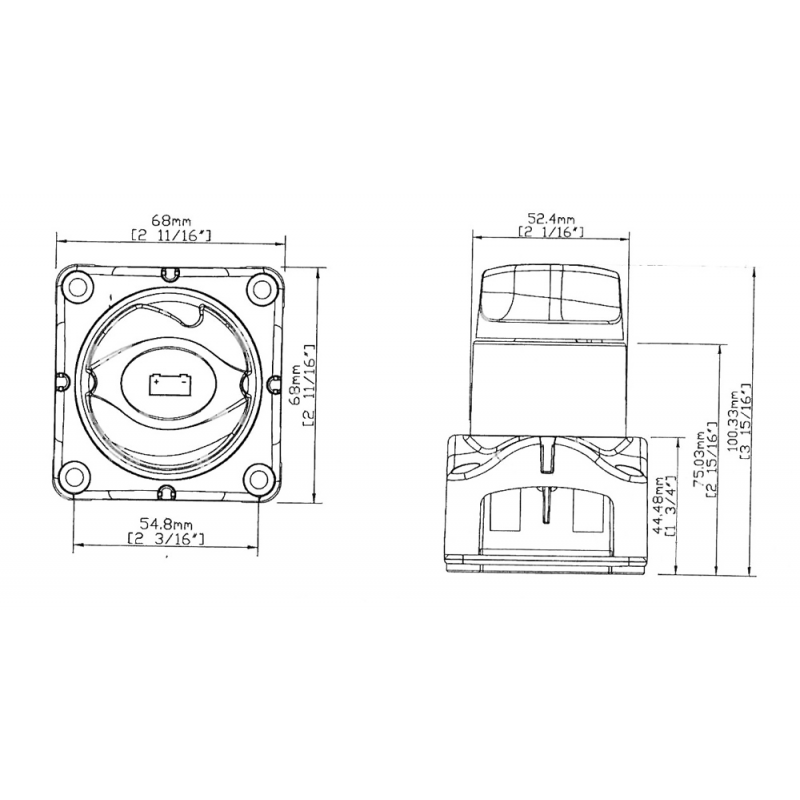

Battery switch BEPwith remote control. Particularly suitable when battery cables are toolong and can cause problems. It is possible so to shorten their length.Equipped with a manual operation. Max capacity: 300 Amp continuous,1250 Amp during starting cycle.

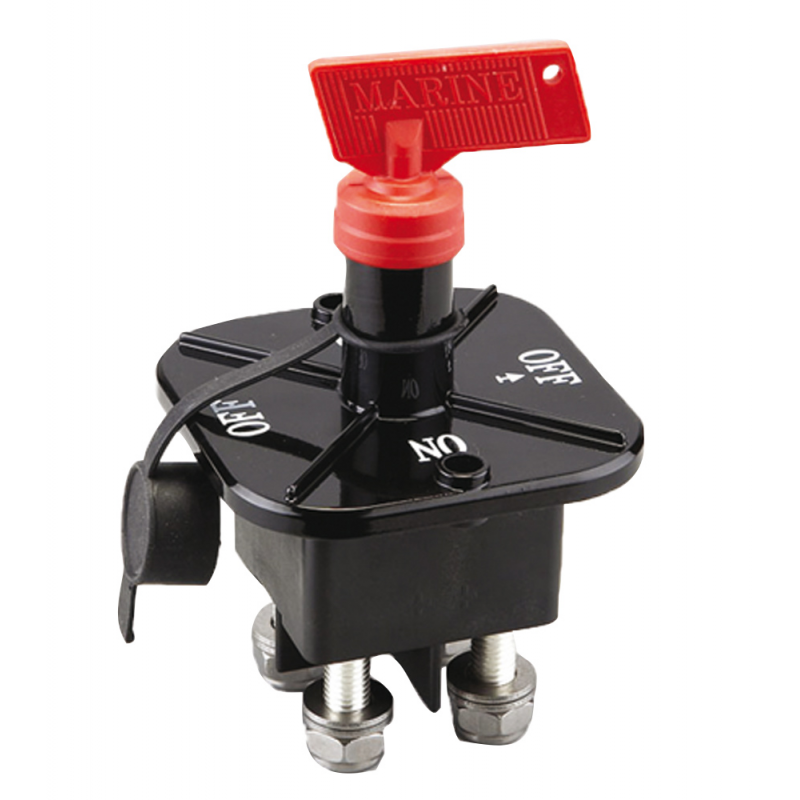

Bipolarer Batterieschalter mit abnehmbarem Schlüssel 120 Amp Dauerbetrieb, 2000 Amp / 3 ". Konform mit UNI EN 28846. Ausführung in schwarzem Kunststoff, Kontakte in versilbertem Kupfer. Grösse Flanschbefestigung: mm 90x90 Höhe insgesamt 142Additional information:Bipolar battery switchmade in black plastic material, silver-plated copper rear contacts, withremovable key. 120 Amp continuous, 2000 Amp/3. UNI EN 28846.

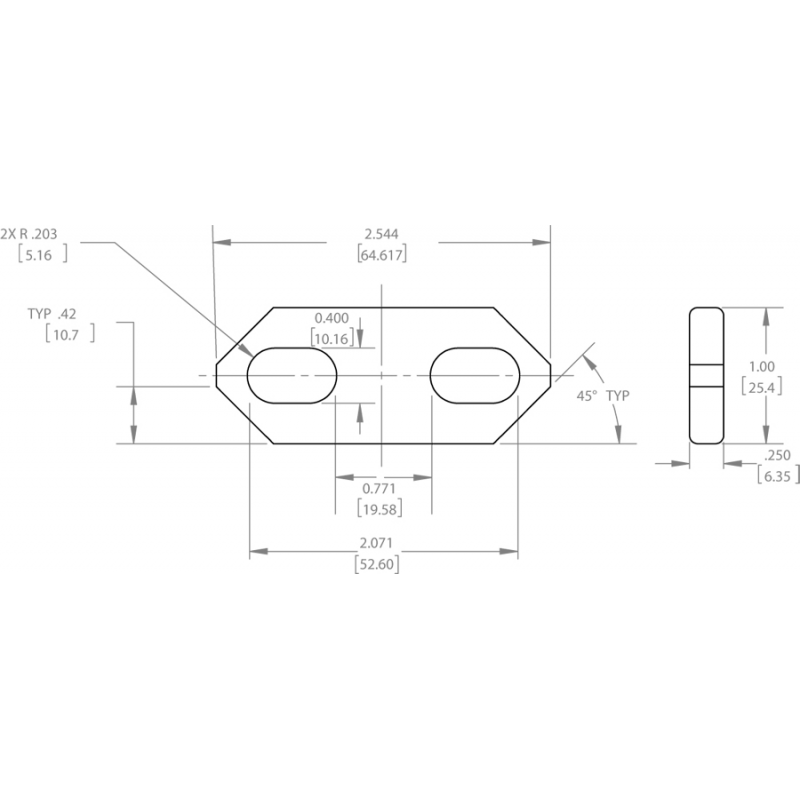

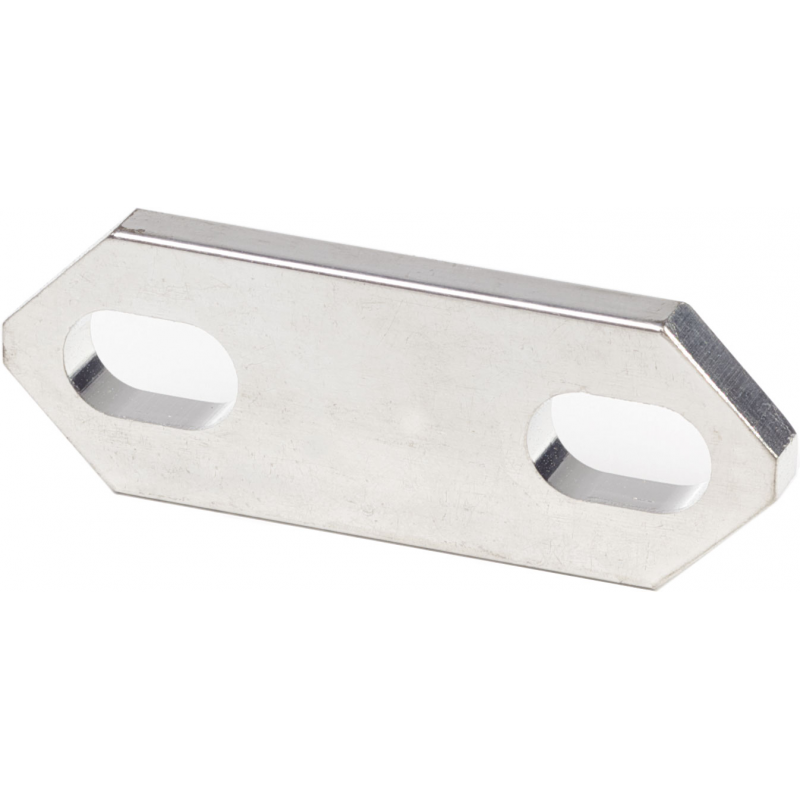

Battery Switch Link Bus tinned copper, to connect the battery cut-off switches in parallel. Sold in pairs. Pcs 2. Original ref. 9159

Battery switches 0-1-2made of reinforced polycarbonate. Silver-plated copper contacts.Surface or flush mounting. Includes AFD (alternator field disconnect). Continuous Rating 350A Max - Intermittent Rating 600A Max - Cranking Rating 30 sec. 1200A Max. Original ref. 11001

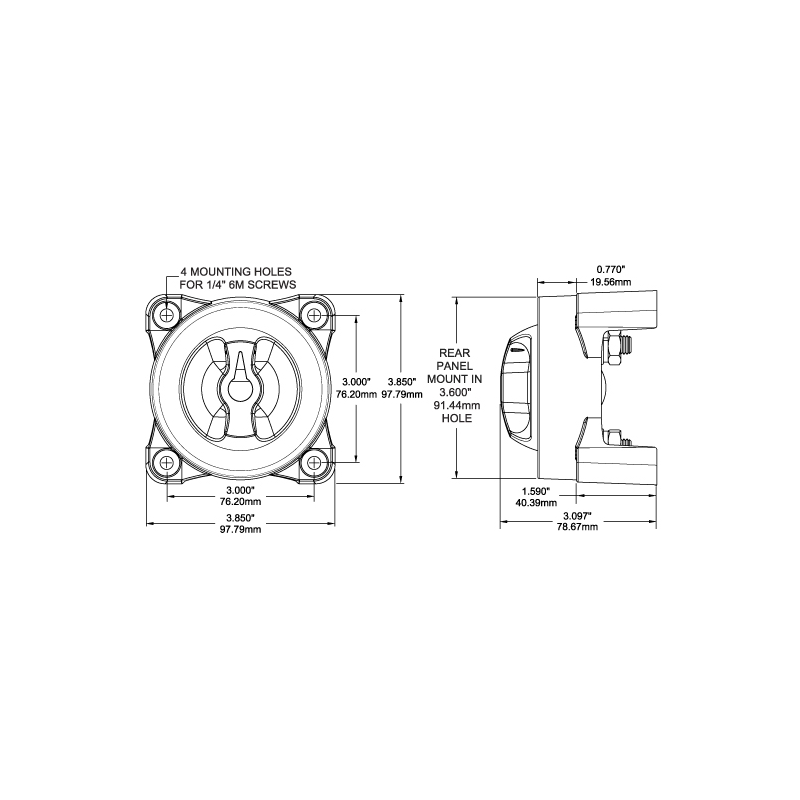

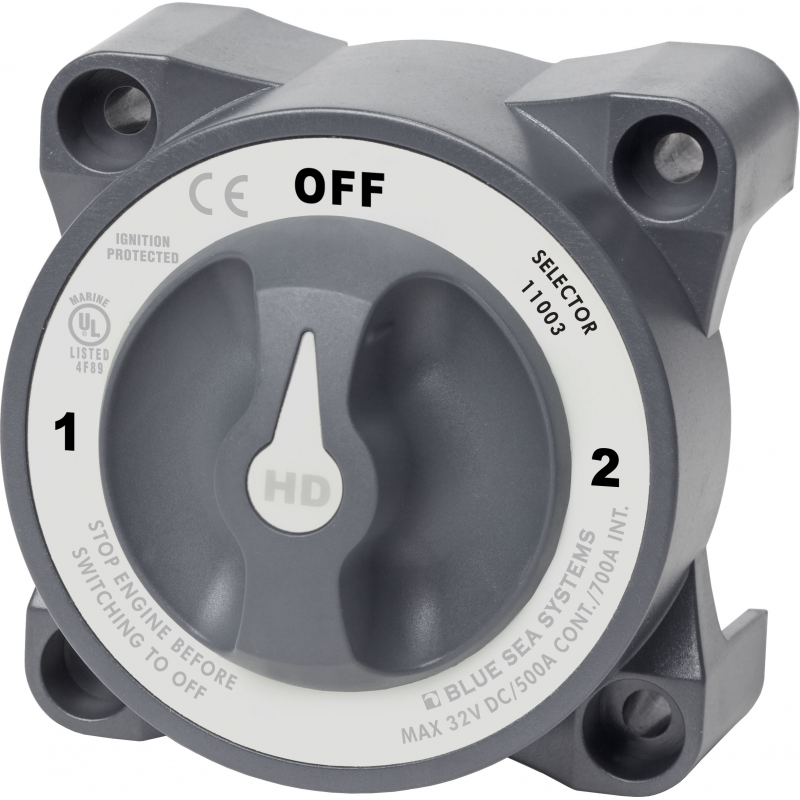

Battery switches 0-1-2made of reinforced polycarbonate. For heavy-duty use. Silver-plated copper contacts. Surface or flush mounting. Includes AFD (alternator fielddisconnect). Continuous Rating 500A MAX - Intermittent Rating 700A MAX - Cranking Rating 30 sec. 1600A MAX. Original ref. 11003
