Thru-Hull Chirp transducer. Work with medium band frequencies from 95 to 155Khz designed for fishermen. Suitable for glass, wood and metal fiber hulls (if suitably insulated). Built in three models with different positions of the internal ceramic element to adapt to boats with a more or less inclined hull. For fairings from 0 to 7. Opening cone 26 ° -17 °. Compatible with Compatibile GO, ELITE FS, ELITE TI2, HDS LIVE, NSSEVO3 e tramite adattatore con HDSGEN3, CARBON. It does not allow the structure scan.12 mt of extendable cable with the article 5605249 of another 3 mt

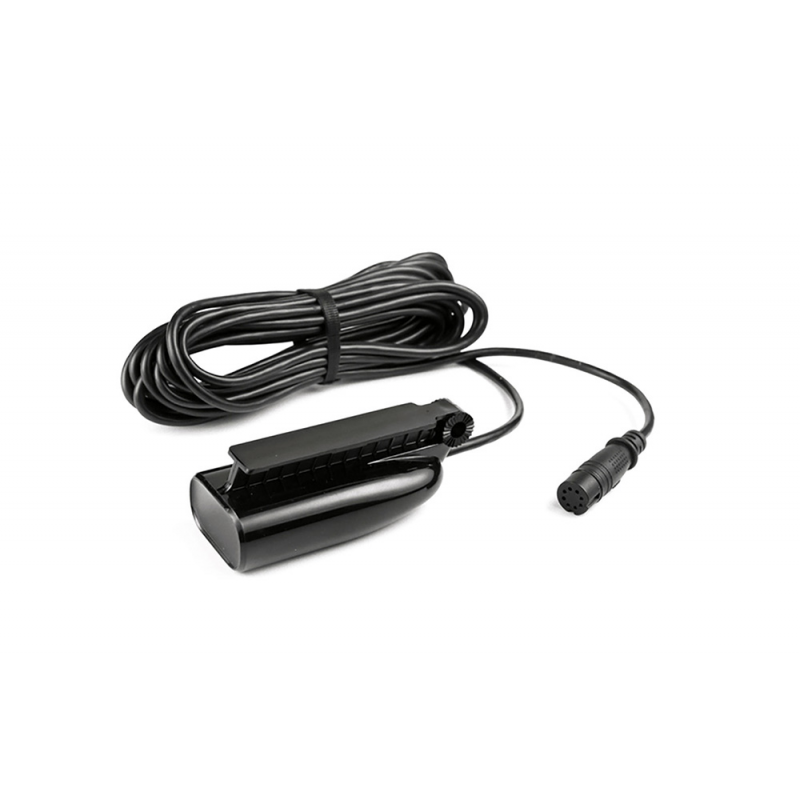

Transducers for HOOK 2 SS with display over 5". Not compatible with other instruments

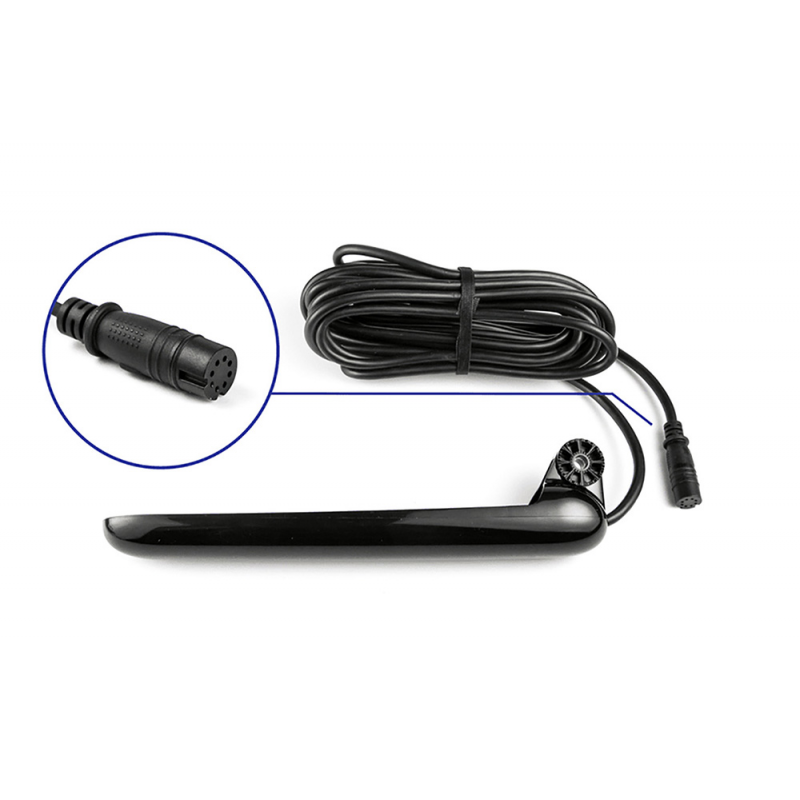

Transducers for HOOK 2/REVEAL TS not compatible with other instruments

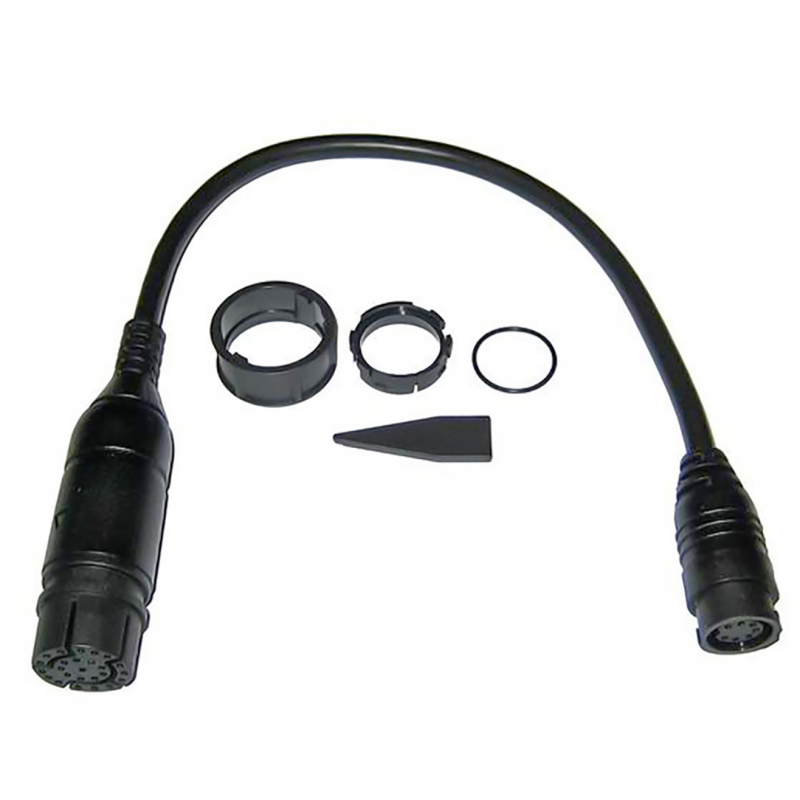

25-pin to 7-pin adapter cable to connect Airmar 7-pin transducer (ax7 / cx7 / ex7 / eSx7 MFD connector) to AXIOM RV display

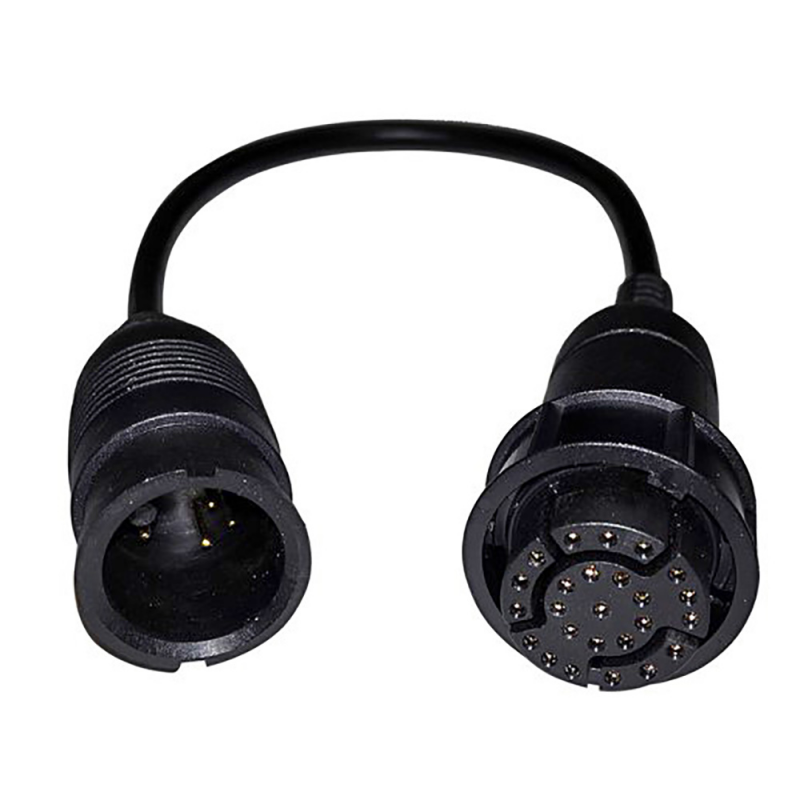

25-pin to 8-pin adapter cable to connect existing 8-pin Airmar transducer (CP370 connector) to AXIOM RV display

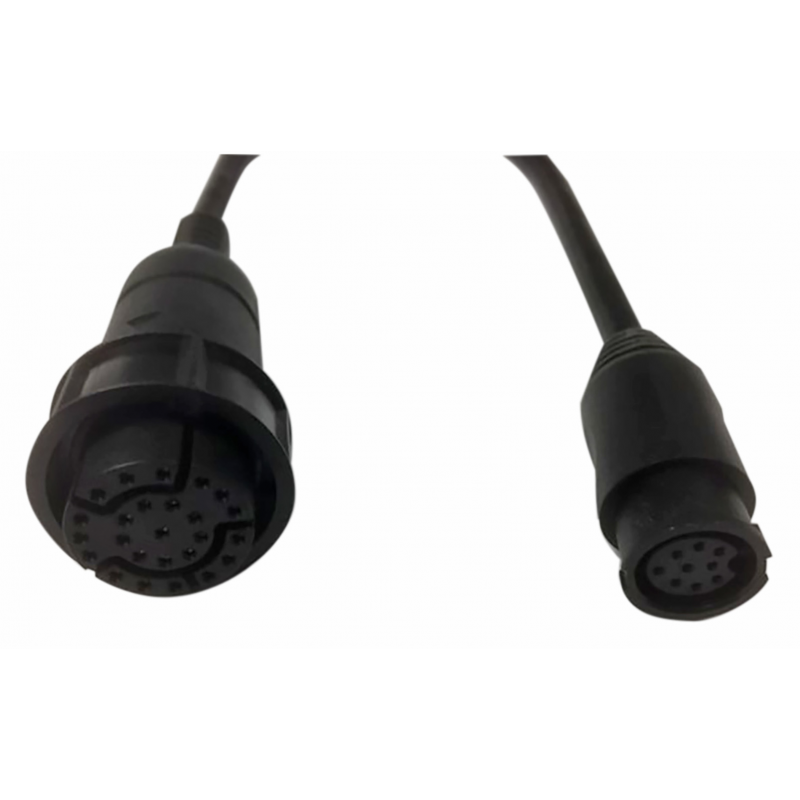

25-pin to 9-pin adapter cable to connect existing 9-pin DownVision transducer (CPT-1xx) to AXIOM RV display

Transducers for Axiom and Axiom PRO with hull-mounted installation Designed for inboard or outboard boats, allow you to easily identify structures and locate fish through images realistic and clear of the RealVision 3D echo sounder. High-band, broad-spectrum and 4-channel CHIRP incorporating DownVision echosounders, SideVision . Integrated rapid response water temperature sensor for fast and accurate readings. The RV-212/20 and RV312 / 20 system has two thru-hull transducers, one transmits and receives to port and down, the other to starboard and downwards, ensuring full 180 ° underwater coverage even on deep keelboats or other underwater projections.

Transducers for Axiom and Axiom PRO with hull-mounted installation Designed for inboard or outboard boats, allow you to easily identify structures and locate fish through images realistic and clear of the RealVision 3D echo sounder. High-band, broad-spectrum and 4-channel CHIRP incorporating DownVision echosounders, SideVision . Integrated rapid response water temperature sensor for fast and accurate readings. The RV-212/20 and RV312 / 20 system has two thru-hull transducers, one transmits and receives to port and down, the other to starboard and downwards, ensuring full 180 ° underwater coverage even on deep keelboats or other underwater projections.

Transducers for Axiom and Axiom PRO with hull-mounted installation Designed for inboard or outboard boats, allow you to easily identify structures and locate fish through images realistic and clear of the RealVision 3D echo sounder. High-band, broad-spectrum and 4-channel CHIRP incorporating DownVision echosounders, SideVision . Integrated rapid response water temperature sensor for fast and accurate readings. The RV-212/20 and RV312 / 20 system has two thru-hull transducers, one transmits and receives to port and down, the other to starboard and downwards, ensuring full 180 ° underwater coverage even on deep keelboats or other underwater projections.

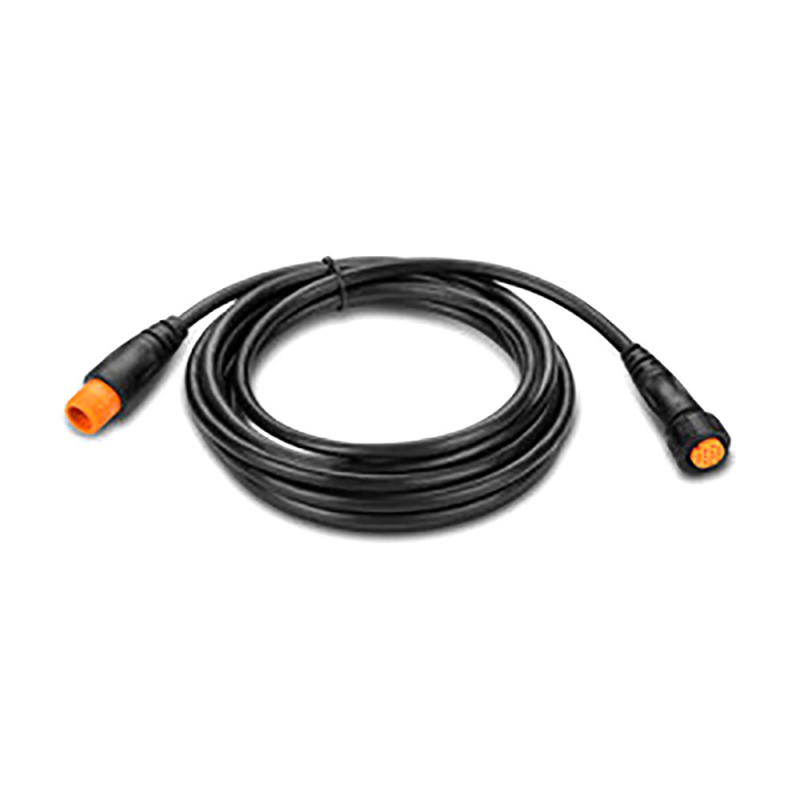

Extension cable mt.3 to 12 pin for transducers

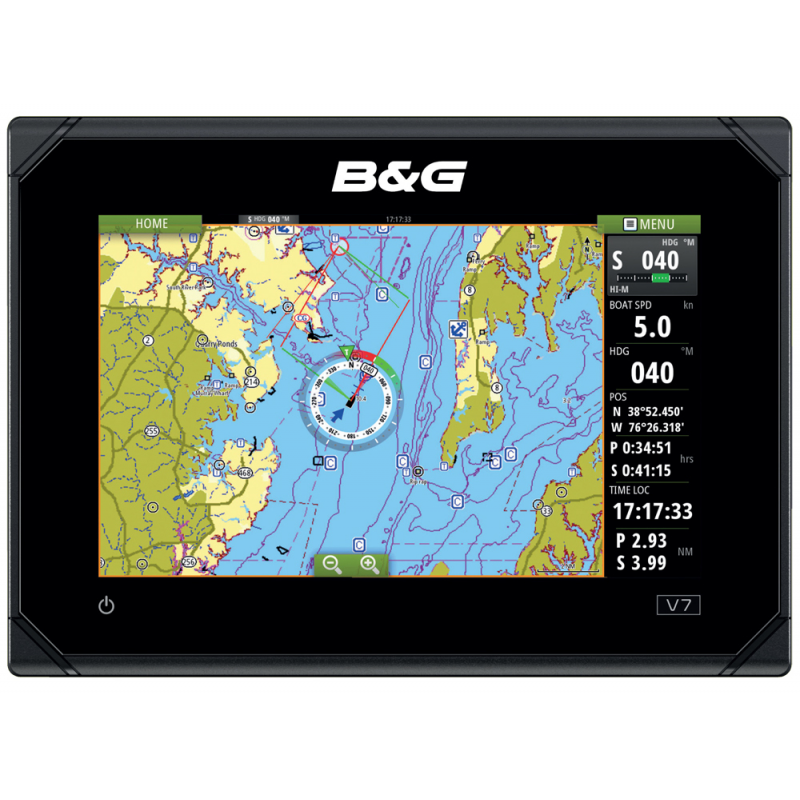

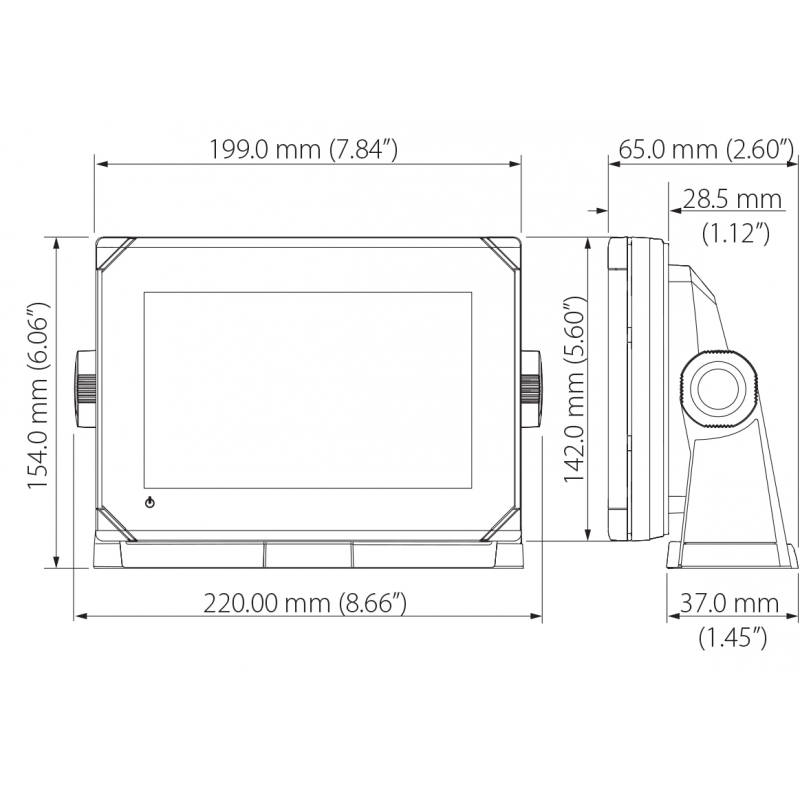

Ideal for all sailing and non-sailing boats. It integrates perfectly into the dashboard with a wire or bracket installation, it is controlled via touchscreeno ZC1 - ZC2 controllers. Chartplotter with built-in 10 Hz GPS receiver and access to maps and updates via the built-in Wi-Fi integrated GoFree. In addition to the "classic" graphic representations, there are screens dedicated to those who love sailing. In these representations are included all the information such as wind, speed, compass, Gps, depth and many others.The internal sonar includes the CHIRP Broadband Sounder and StructureScan® allow you to identify areas of interest, dangerous for passage or suitable for fishing. The ForwardScan transducer integrates seamlessly with this instrument to show you what you're up against and help keep you safe.It integrates with autopilots such as the Nac-1/2/3 and allows for use over the NMEA2000 network. The Vulcan 9 has in addition an ethernet connector for the connection of Halo, Broadband, HD Radars. The software HEROiC offers a simple and intuitive interface and multiple functions, allowing you to have everything under control in one screen by selecting or creating the most suitable layout for your needs. It is possible to superimpose the Downscan or Fowardscan line with the cartography, use the instrument with simple multitouch commands on the touchscreen, as if it were a tablet, manage your routes or use the Autorouting function (with compatible cartography). It also integrates the multimedia management Sonic Hub2 or Fusion Link for entertainment on board, displays engine data (for engines (for engines equipped with the appropriate modules) and more via the NMEA 2000® network. IPX7 waterproof, MicroSD card reader, 12 Vdc power supply. Connector forConnector for 9-pin transducers. 7-pin transducers require adapter cable Art. 5605252. Includes: Cover, connector caps, fuse, fuse holder,power cable, bracket.

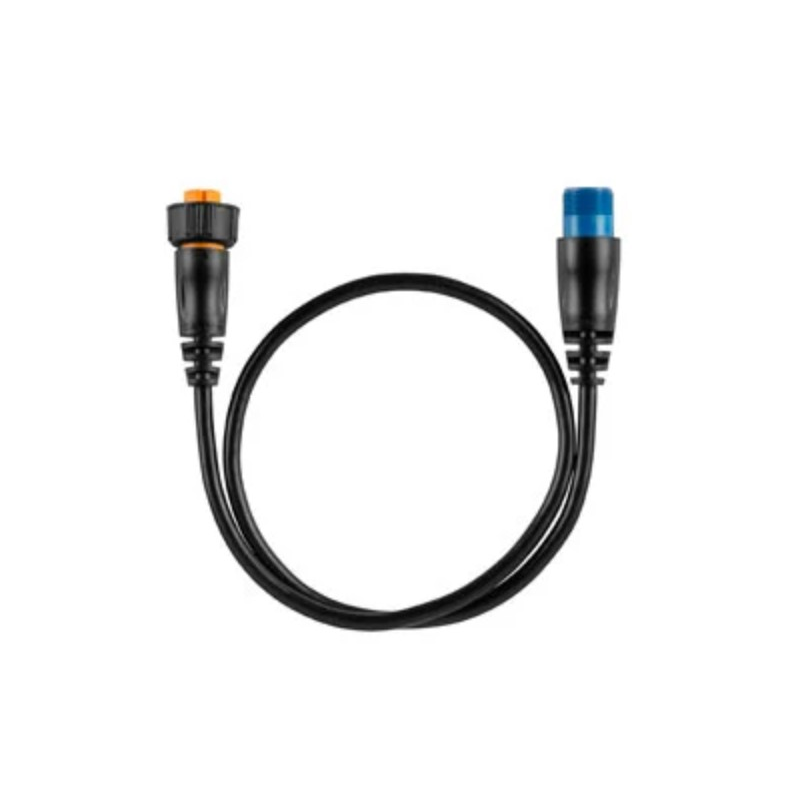

Cable to adapt an 8-pin transducer on 12-pin instruments

Extension cable mt.9 to 12 pin for transducers

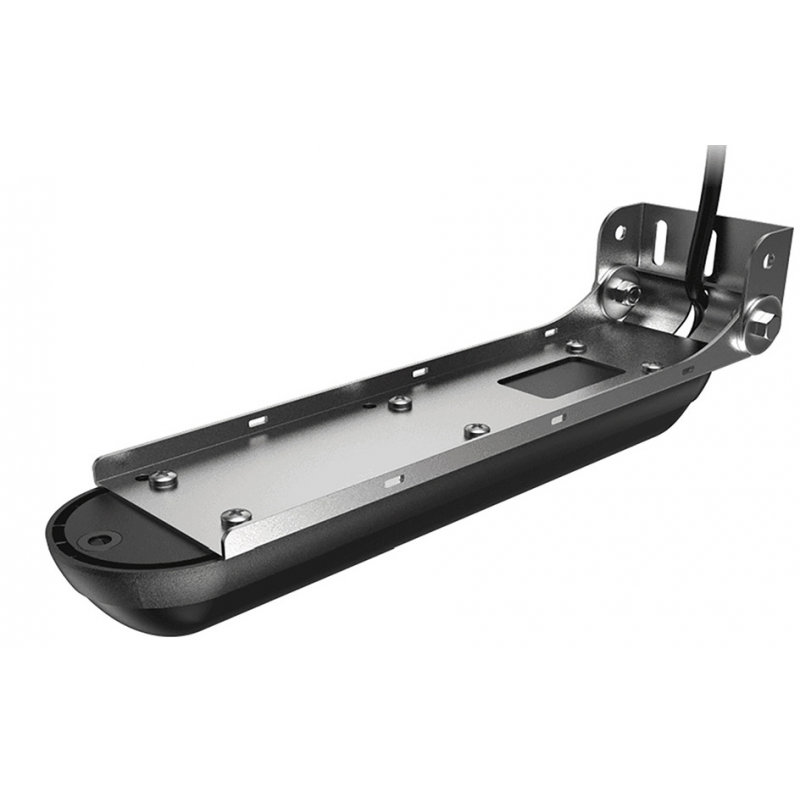

Active Imaging is a new sonar technology that provides high resolution images without sacrificing any ladder. It combines a traditional medium / high CHIRP sonar element and structurescan frequencies in a single transducer making installation extremely simple. The sidescan works with separate sonar elements for transmission and reception allowing a greater beat speed and consequently a better image quality. For Elite-TI2, Elite Fs, HDS LIVE. You can extend the cable by another 3 meters using the extension 5605249

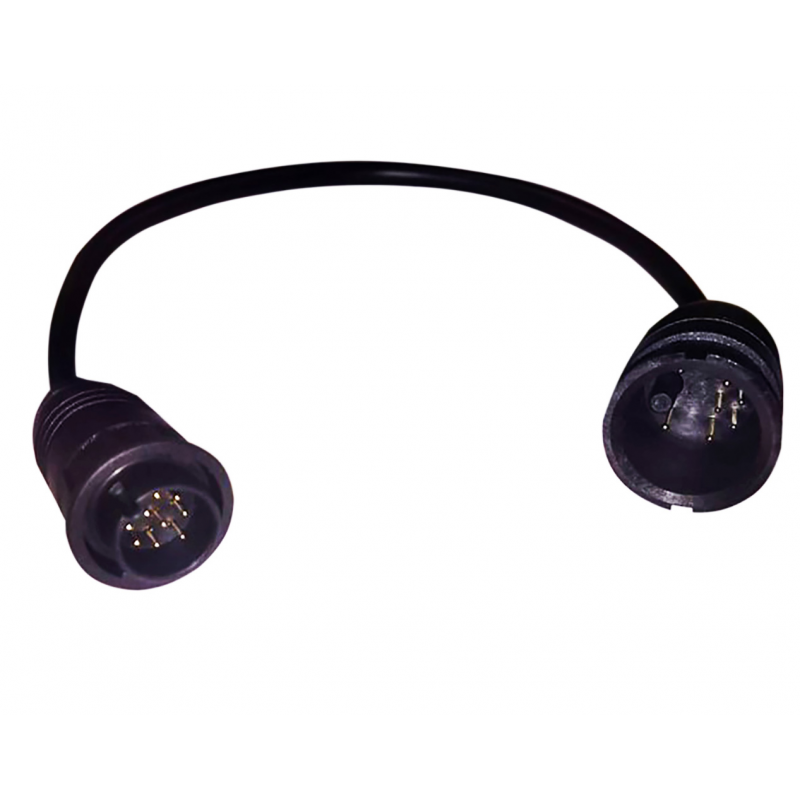

9-pin to 8-pin adapter cable to connect existing 8-pin Airmar transducer (CP370 connector) to AXIOM 7 DV display

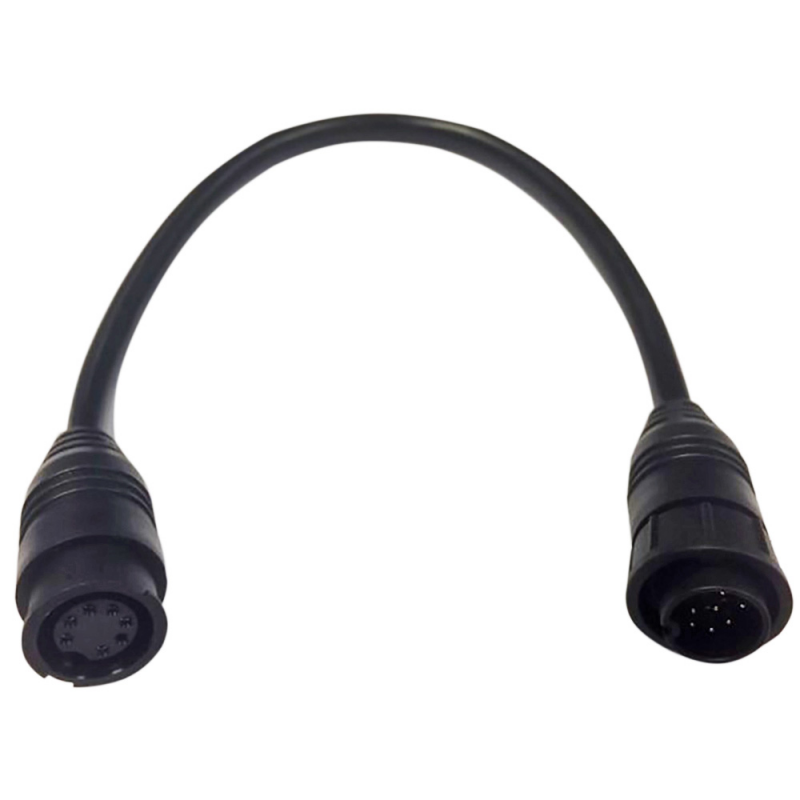

9-pin to 7-pin adapter to connect 7-pin Airmar transducer (ax7 / cx7 / ex7 / eSx7 MFD connector) to AXIOM 7 DV display

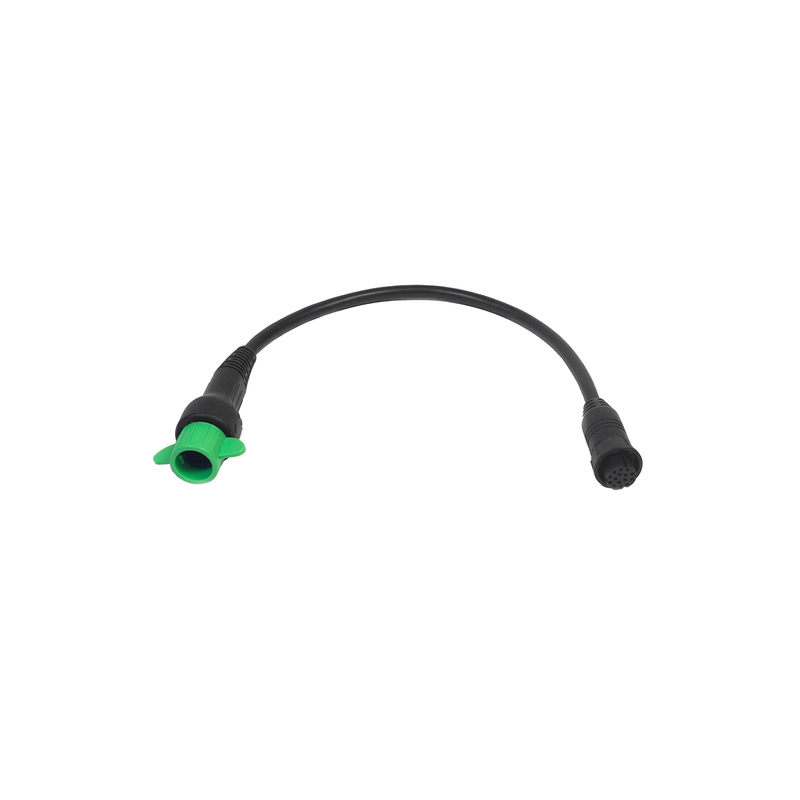

Adapter to adapt DragonFLy PRO transducers to Element Instrument

Adapterkabel für DragonFly mit grünem Durchlassring zu grünem GebersteckerAdditional information:Adapter cable for dragonfly with green connector to transducer with black connector as cpt 60, cpt 70, cpt 80.

External GPS antenna active at 10 Hz. Provides digital data on Nmea 2000 protocol or on Nmea 0183 if installedwith the appropriate optional cable. High precision, receives 12 satellites for position data and 2 for WAAS. Possibilityto terminate the NMEA 2000 network with a special Pin to be installed between the cable and the antenna. Packaging with materialinstallation standard and 6 m Nmea 2000 cable.

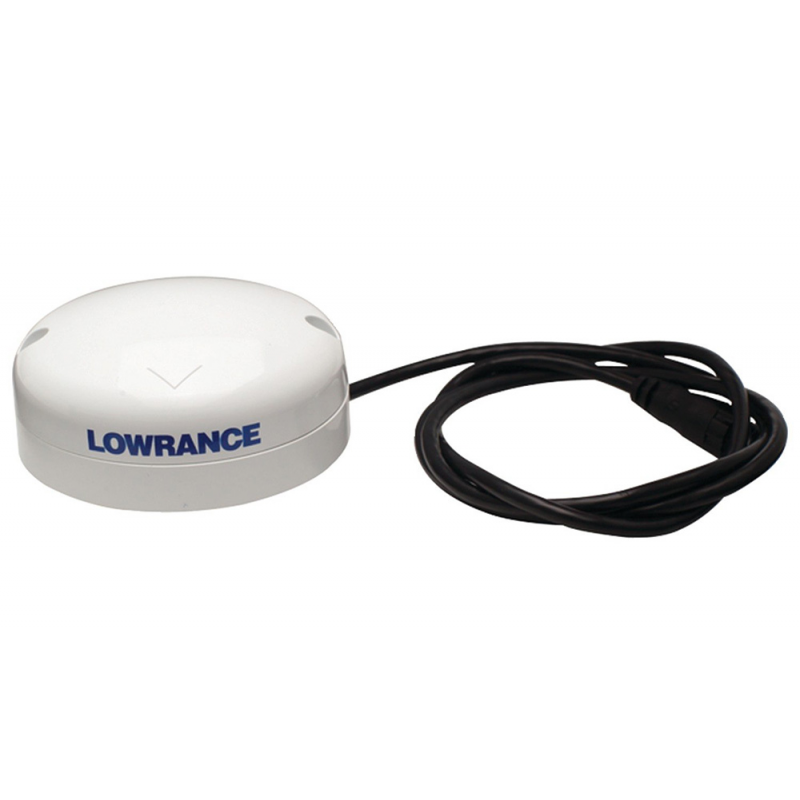

Antenne aussen GPS POINT-1 Datenaktualisierung bei 10 Hz, Grösse: mm 90x38 Höhe, Anschluss an Nmea 2000 Netzwerken.Additional information:Antenna GPS/hdg provides extremely accurate and rapid boat posi-tion and speed updates. Easily connects to any HDSGen2, HDS Gen2 Touch or Elite-7 display or anyNMEA 2000® network. It is fully waterproof and canbe pole or surface mounted on any boat. SupportsGPS and GLONASS. Integrated electronic compassprovides 10Hz heading for chart stabilization andradar overlay. Dims. Ø mm. 90 x 38 H.

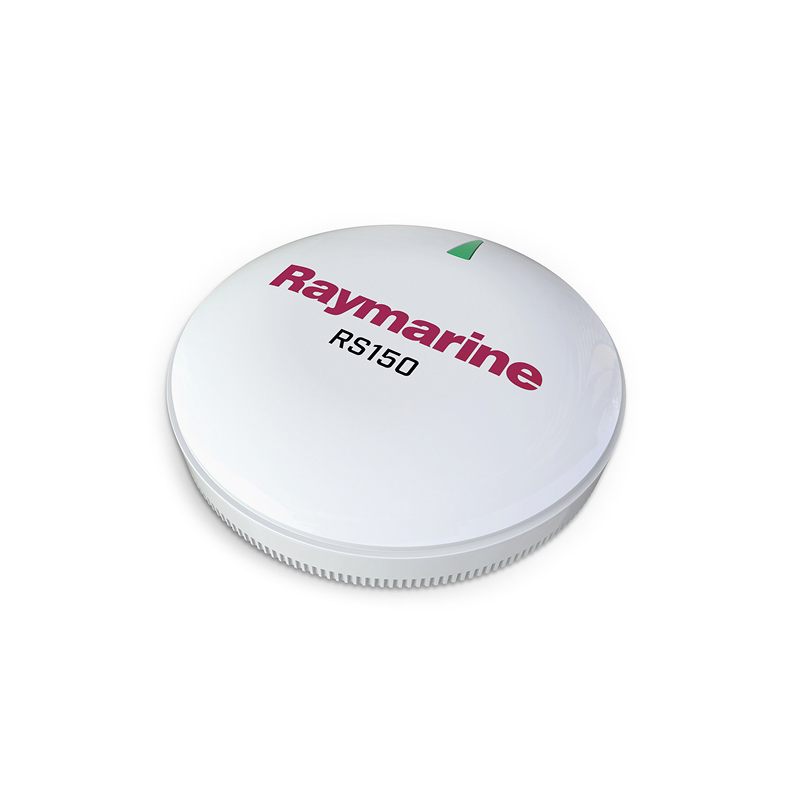

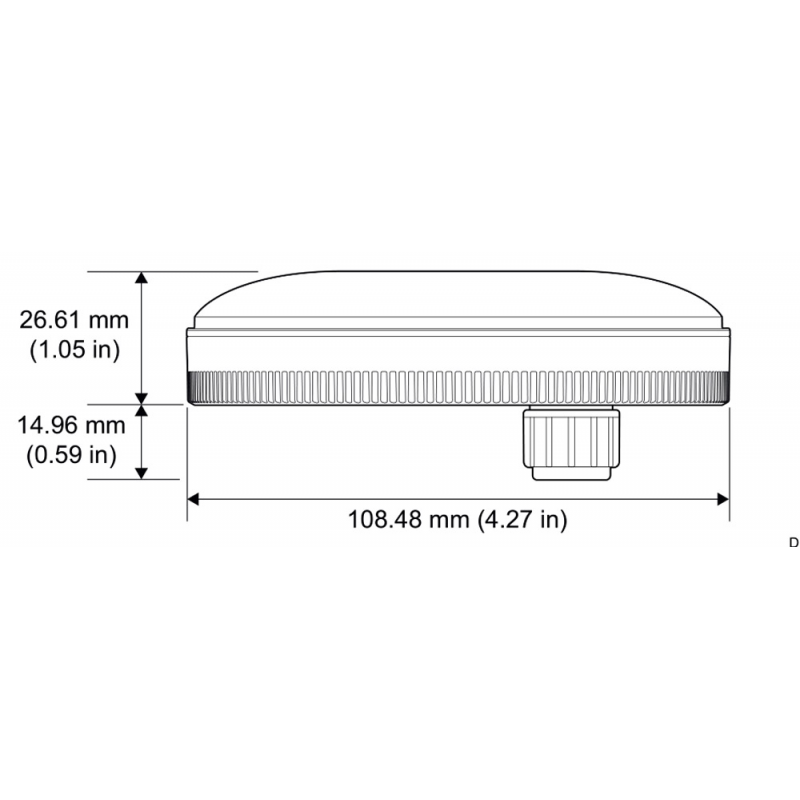

Waterproof ipx6. seatalkng, space based augmentation system (sbas), wass, egnos, msas and gagan enabled. typical accuracy less 3 m, guaranteed accuracy less 5 m, 72 channel gps receiver, power supply 12vdc consuption: 50 ma.compatible for instruments: e,a,c,gs series es series es75 /es78 e-series widescreen e90w, e120w, e140w -- With kit 5607055: c-series classic c80, c120 e-series classic e80, e120

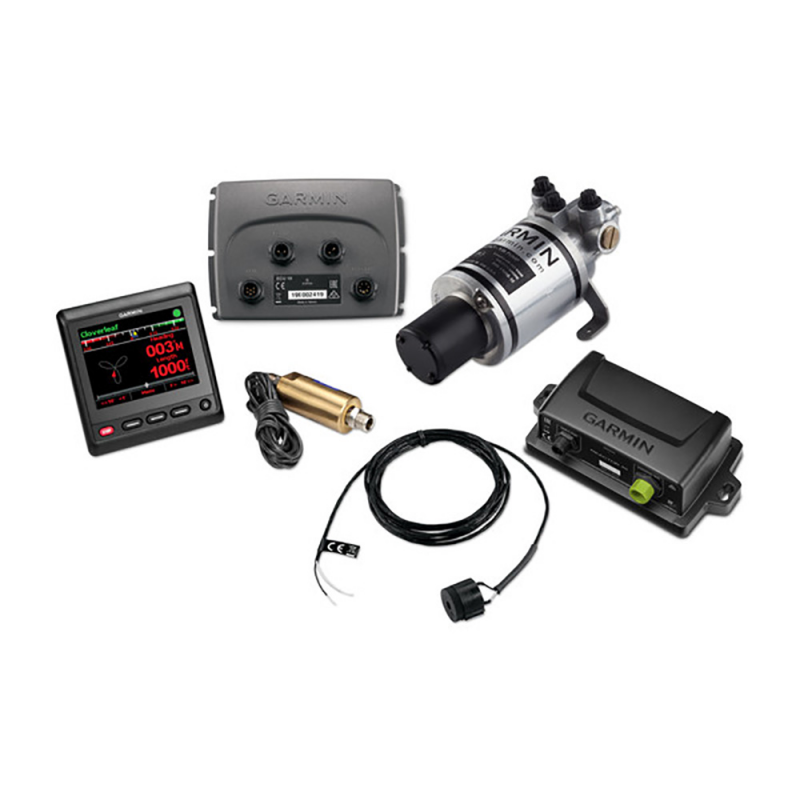

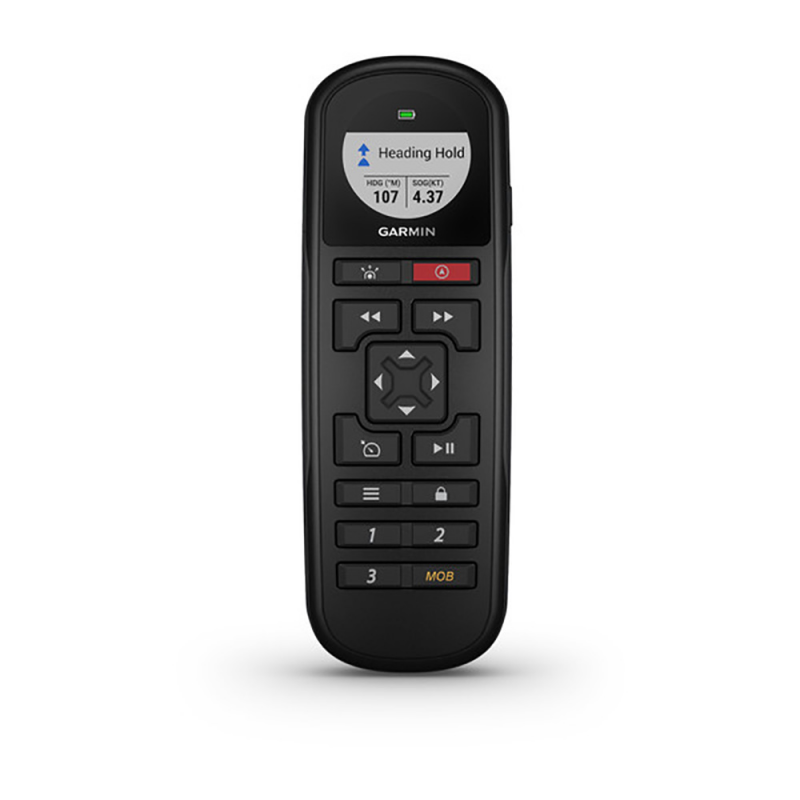

The most compact and reactive autopilot system ever, ideal for small and medium sized boats (1), reduction of deviation and course errors, and rudder movement with less electric consumption. Easy to install and very easy to calibrate. It integrates perfectly with the Garmin Marine system, also implementing the useful Auto Guidance 3.0 (2) function for automatic route calculation (requires BlueChart® g3 Vision® HD mapping).Solid State 9-Axis AHRS Technology The state-of-the-art 9-axis solid state AHRS technology makes the system easy to install and easy to calibrate, minimizing errors in direction, deviation from routes, rudder movements and energy consumption, allowing those on board to navigate more comfortably.Control the autopilot directly from the chartplotter: Fully interfaceable via the NMEA 2000 network, the new Reactor 40 autopilot can be controlled from the compatible Garmin Marine chartplotter display. It is possible to enjoy advanced features such as the new Auto Guidance 3.0 (2 for the automatic calculation of the best route and fast, simple and reliable navigation.Garmin Shadow Drive Using the unique Garmin Shadow Drive feature, you can temporarily disable the autopilot when you are working on the rudder, leaving the user free to maintain control of the boat in case the situation requires a quick maneuver or a emergency procedure. The autopilot is then reactivated automatically when a steady course is maintained.Connection to devices on the network: The Compact Reactor 40 autopilot can be activated directly from the display of the compatible Garmin chartplotter (1) or from 3 GHC control units. GHC communicates with the autopilot system via the NMEA 2000® network, allowing simple sharing of autopilot direction data with other devices. This activates the MARPA function and map overlay when the device is connected to a Garmin radar and chartplotter. An optional portable wireless remote control is also available.Compatible with the following Garmin Marine devices: echoMAP CHIRP 52/72/92 series, ECHOMAP Plus 62/72/92 series, GPSMAP® 7400/8000/8400/8600 and 722/922/1022/1222 series.Contents of the package CCU Reactor 40 ECU (Electronic Control Unit) 1.0 L pump for cylinders up to 150 cm3 CCU / ECU connection cable Horn ECU power cord NMEA 2000® installation kit Documentation
