Drehbarer Anschluss für Rollanlagen Barton Art. 7842334/5, Ø Trommel 52m, max. Arbeitslast kg. 554, Bruchlast kg.1108Additional information:is from machine-turned solid aluminium withstainless steel ball bearing. For furling art.7842334/5, Ø mm. 25. Maximum load 554kg, breaking load of 1108 Kg.

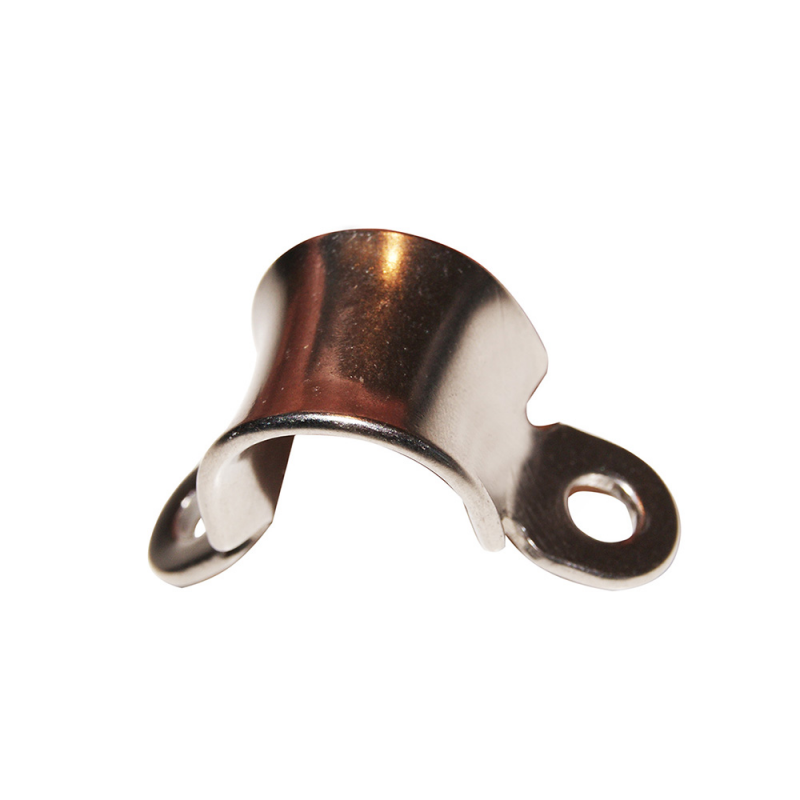

St. steel halyard feeder.Fixing plate 42 x 18 mmHalyard Ø 12 mmDrilling 2 x Ø 4 mm

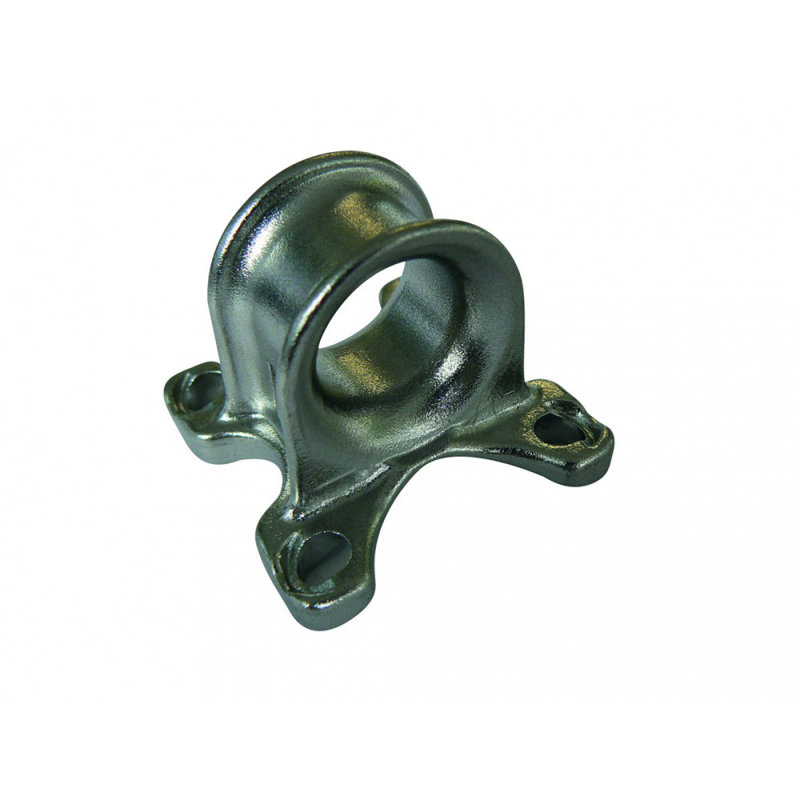

St. steel halyard feeder.Fixing plate 45 x 45 mmHalyard Ø 18 mmDrilling 4 x Ø 4.8 mm

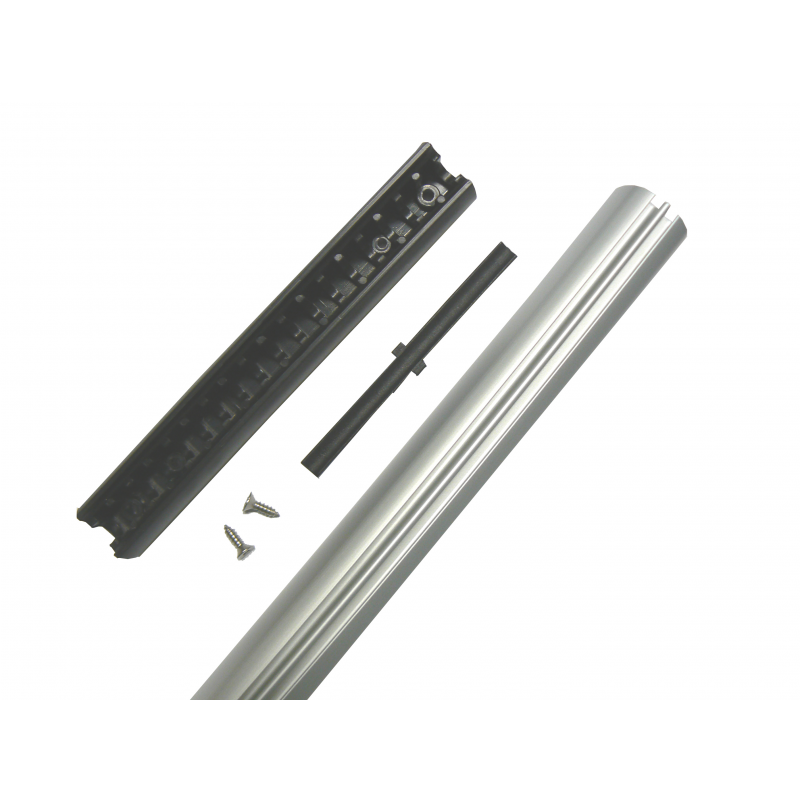

Ergänzungs-Kit mit 1 Alu-Profil Länge 1, 5 Meter für Serie S, 2,15 Meter für Serie T, 1 Werkzeug mit Schrauben nur für Art. P26901 nr, 1 Plastik-Profil Länge 1,5 MeterAdditional information:Includes : 1 alloy spar 1,5 mt.,1 plastic spar, 1 quick-couplingsleeve with screws.

Ergänzungs-Kit mit 1 Alu-Profil Länge 2,15 Meter für T, 1 Werkzeug mit SchraubenAdditional information:Includes : 1 alloy spar 2,15 mt.,1 quick-coupling sleeve with screws

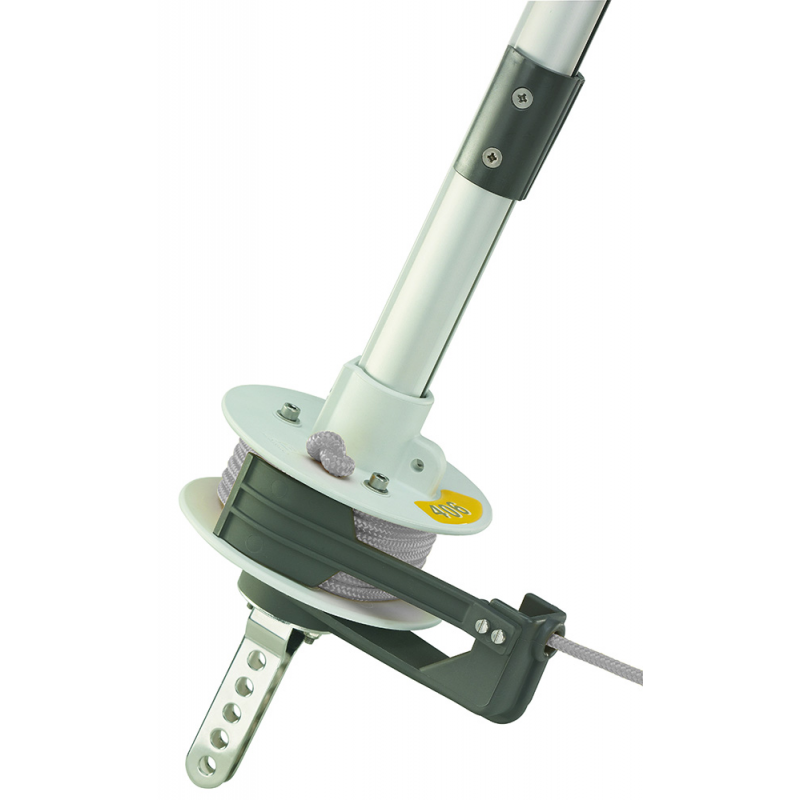

Leichte Rollanlage, Trommel mit Kugellager, alle Teile aus Polyamid. Version Spanner für Boote von 4 bis 6 MeterAdditional information:Lightweight and sturdy, the 406 jib reefing features all the benefits of a large headsail reefing system : 2 Delrin® twin ball bearing races in bothdrum and halyard swivel. All components are manufactured from polyamide. This version is conform to boat between 4 and 6 meters. Luffrope Ø 6,5 mm. Supplied complete for forestay mt. 6,35. Max headsall size m² 12.

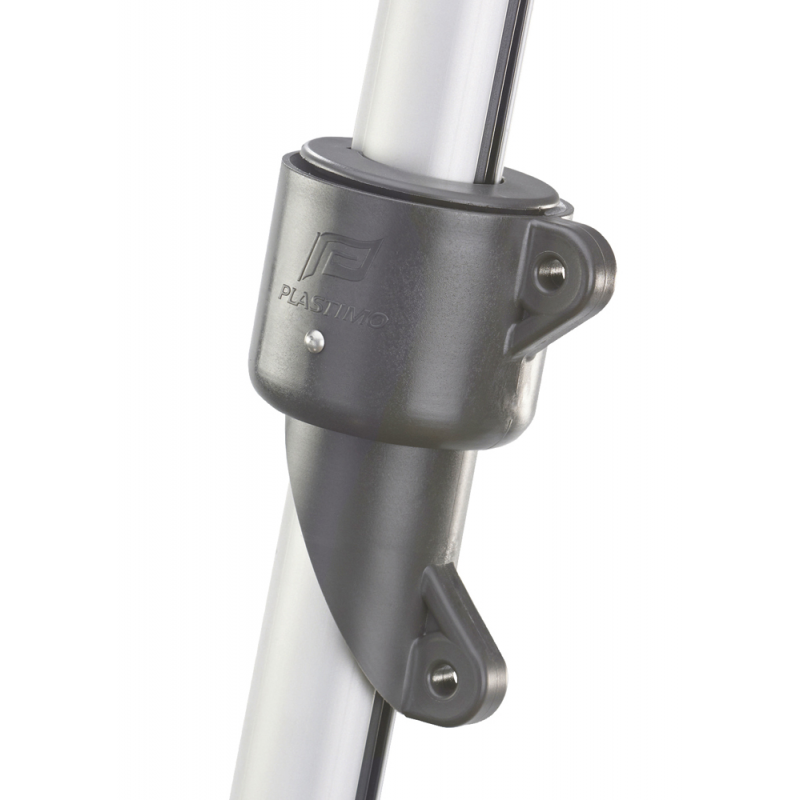

Leichte Rollanlage, Trommel mit Kugellager, alle Teile aus Polyamid. Version Standard für Boote von 4 bis 6 MeterAdditional information:Lightweight and sturdy, the 406 jib reefing features all the benefits of a large headsail reefing system : 2 Delrin® twin ball bearing races in bothdrum and halyard swivel. All components are manufactured from polyamide. This version is conform to boat between 4 and 6 meters. Luffrope Ø 6,5 mm. Supplied complete for forestay mt. 6,45. Max headsall size m² 12.

Leichte Rollanlage mit 2 Kugellagern. Alle Teile aus Polyamid. Version Spanner für Boote von 4 bis 6 MeterAdditional information:Lightweight and sturdy, the 406 jib reefing features all the benefits of a large headsail reefing system : 2 Delrin® twin ball bearing races in bothdrum and halyard swivel. All components are manufactured from polyamide. This version is conform to boat between 4 and 6 meters. Luffrope Ø 5 mm. Supplied complete for forestay mt. 6,75. Max headsall size m² 12.

Leichte Rollanlage mit 2 Kugellagern. Alle Teile aus Polyamid. Version Standard für Boote von 4 bis 6 MeterAdditional information:Lightweight and sturdy, the 406 jib reefing features all the benefits of a large headsail reefing system : 2 Delrin® twin ball bearing races in bothdrum and halyard swivel. All components are manufactured from polyamide. This version is conform to boat between 4 and 6 meters. Luffrope Ø 5 mm. Supplied complete for forestay mt. 6,85. Max headsall size m² 12.

Rollanlage 360 Grad, Version Spanner. Trommel mit Torlon- und Delrin-Kugellager, für Boote von 6 bis 9 MeterAdditional information:Winder equipped with a new model of 360-degree anti-lock drum for better driving and safety. This concept offers excellent protection of the drum and allows a discrete integration of the fixing screws of the blades. The winder is equipped with very resistant stainless steel and Delrin balls. The new reel is equipped with Torlon and Delrin balls, which allow to considerably increase the performance and mechanical resistance of the winder. Winder series S equipped with a single raceway (S = single) allows easy installation on an existing stay. In the lande version, these are adjustable in width, Ø mm. 4 - 7, drum capacity mt. 13, Ø braid mm. 6.

Rollanlage 360 Grad, Version Standard, Trommel mit Torlon- und Delrin-Kugellager, für Boote von 6 bis 9 MeterAdditional information:Winder equipped with a new model of 360-degree anti-lock drum for better driving and safety. This concept offers excellent protection of the drum and allows a discrete integration of the fixing screws of the blades. The winder is equipped with very resistant stainless steel and Delrin balls. The new reel is equipped with Torlon and Delrin balls, which allow to considerably increase the performance and mechanical resistance of the winder. Winder series S equipped with a single raceway (S = single) allows easy installation on an existing stay. In the lande version, these are adjustable in width, Ø mm. 4 - 7, drum capacity mt. 13, Ø braid mm. 6.

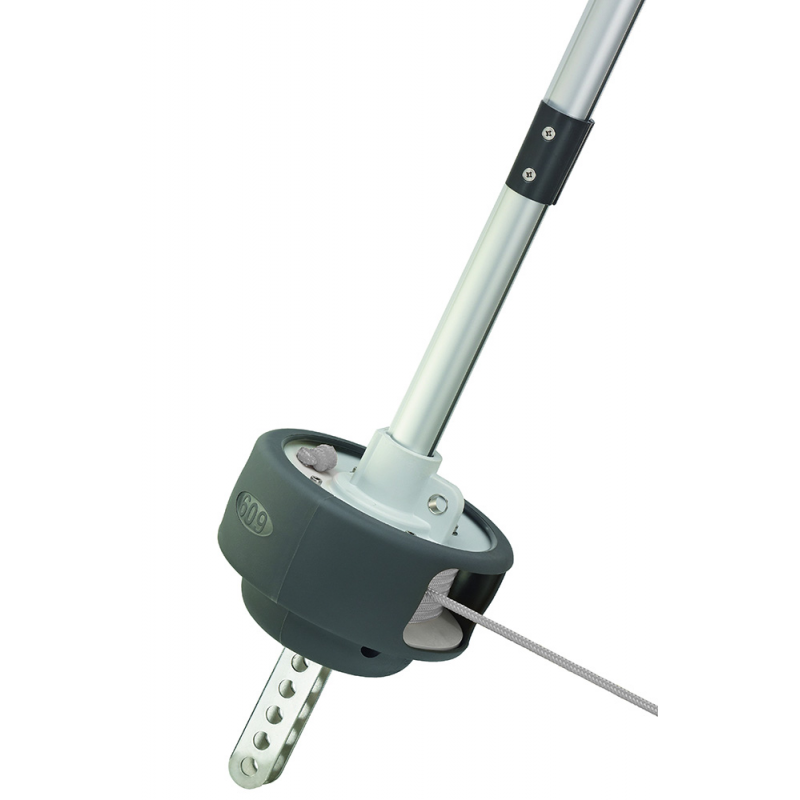

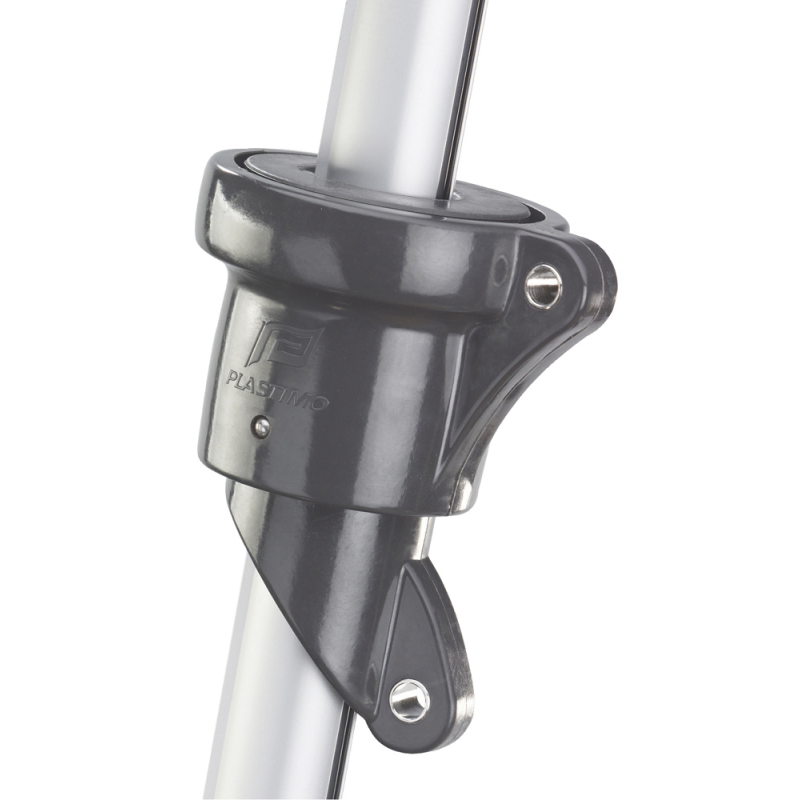

Rollanlage 360 Grad, Version Spanner, Trommel mit Torlon- und Delrin-Kugellager,für Boote von 6 bis 9 MeterAdditional information:Winder equipped with a new model of 360-degree anti-lock drum for better driving and safety. This concept offers excellent protection of the drum and allows a discrete integration of the fixing screws of the blades. The winder is equipped with very resistant stainless steel and Delrin balls. The new reel is equipped with Torlon and Delrin balls, which allow to considerably increase the performance and mechanical resistance of the winder. Double-channel T series (T = twin) wrapper allows you to hoist and reinforce the new sail before lowering the old one, perfect for racing or for a second sail. In the lande version, these are adjustable in width, Ø mm. 4 - 7, drum capacity mt. 13, Ø braid mm. 6.

Fockroller 360 Grad, Version Spanner. Trommel mit Kugellager in Torlon und Delrin für bessere Leistung und Haltbarkeit, für Boote von 6 bis 9 MeterAdditional information:Winder equipped with a new model of 360-degree anti-lock drum for better driving and safety. This concept offers excellent protection of the drum and allows a discrete integration of the fixing screws of the blades. The winder is equipped with very resistant stainless steel and Delrin balls. The new reel is equipped with Torlon and Delrin balls, which allow to considerably increase the performance and mechanical resistance of the winder. Double-channel T series (T = twin) wrapper allows you to hoist and reinforce the new sail before lowering the old one, perfect for racing or for a second sail. In the lande version, these are adjustable in width, Ø mm. 4 - 7, drum capacity mt. 13, Ø braid mm. 6.

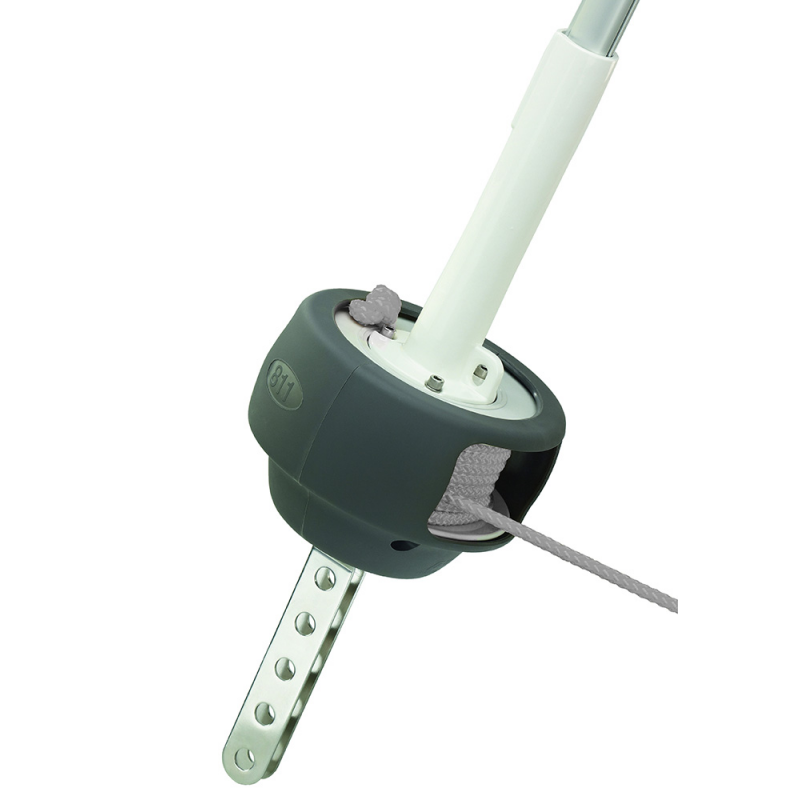

Rollanlage antiblockierbar, 360 Grad, Trommel mit Torlon- und Delrin-KugellagerAdditional information:The 811 drum cheeks swivel through 360°, ensuring safe manoeuvres through a regular feeding of the tiller rope. The drum core is manufaturedfrom highly resistant aluminium combining performance and lightweight features. Drum and halyard swivel are equipped with Torlon® andDelrin® ball bearings for increased performance and mechanical resistance. 811 model comes as standard with adjustable chain plates, allowingboth mounting possibilities (chainplates or turnbuckle). This version is conform to boat between 8 and 11 meters. Luffrope Ø 6,5 mm. Supplied complete for forestay mt. 11,20. Max headsall size m² 35.

Fockroller mit Antiblockersystem, orientierbar 360 Grad. Hoch belstabares Aluminium. Trommel-Kugellager in Torlon und Delrin. Kann wahlweise auf das Stag oder ein Rüsteisen positioniert werden.Additional information:The 811 drum cheeks swivel through 360°, ensuring safe manoeuvres through a regular feeding of the tiller rope. The drum core is manufaturedfrom highly resistant aluminium combining performance and lightweight features. Drum and halyard swivel are equipped with Torlon® andDelrin® ball bearings for increased performance and mechanical resistance. 811 model comes as standard with adjustable chain plates, allowingboth mounting possibilities (chainplates or turnbuckle). This version is conform to boat between 8 and 11 meters. Luffrope Ø 5 mm. Supplied complete for forestay mt. 11,40. Max headsall size m² 35.

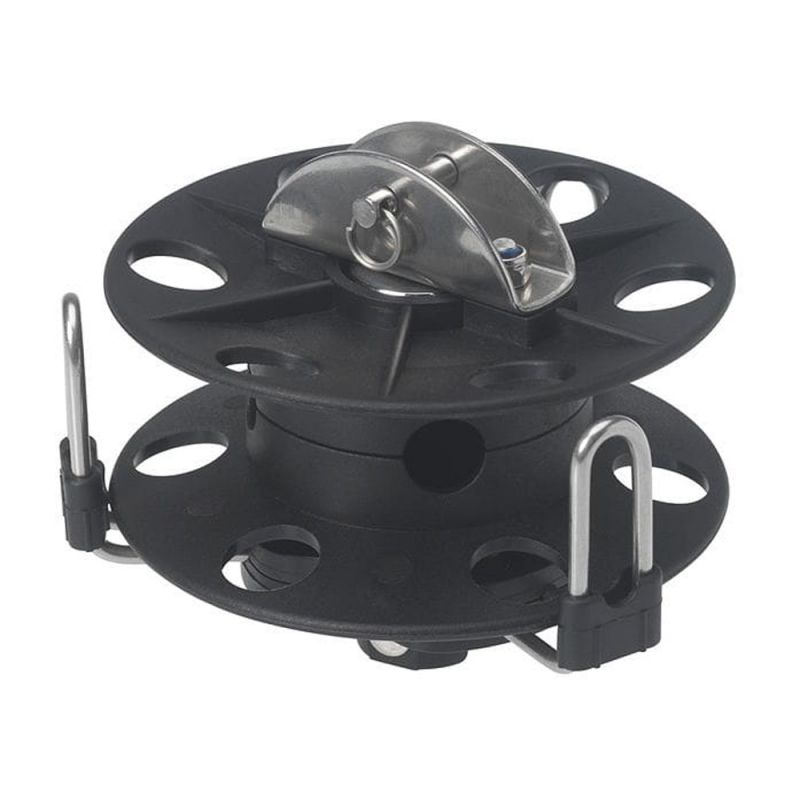

Rollanlage mit Trommel Ø 76mm, max. Arbeitslast kg. 554, Bruchlast kg.1108Additional information:Single line operation for dinghies, dayboats and light cruising yachts two drum sizes workwith a common top head swivel. All have stainless steel ball races for smooth operation. Drumsare moulded from glass fibre reinforced nylon. The drum and the top head swivel are directlyintegrated to the forestay and running simultaneously. The top head swivel art. 7842336 is soldseparately. Drum Ø 76mm. rope Ø 4mm. Max work load 554 kg. Break load 1108 kg.

Rollanlage mit Trommel Ø 95mm, max. Arbeitslast kg. 554, Bruchlast kg.1108Additional information:Single line operation for dinghies, dayboats and light cruising yachts two drum sizes workwith a common top head swivel. All have stainless steel ball races for smooth operation. Drumsare moulded from glass fibre reinforced nylon. The drum and the top head swivel are directlyintegrated to the forestay and running simultaneously. The top head swivel art. 7842336 is soldseparately. Drum Ø 95mm. rope Ø 4mm. Max work load 554 kg. Break load 1108 kg.
